The growing demands of AI in telecommunications highlight the need for edge solutions equipped with advanced GPUs, higher core counts, and greater thermal design power to effectively manage rising AI workloads. AMAX engineers total solutions that deploy AI capabilities directly at the edge, streamlining data processing and supporting scalable growth across the telecommunications sector.

📶
Contact Us to learn more about how AMAX can assist with your edge computing needs.

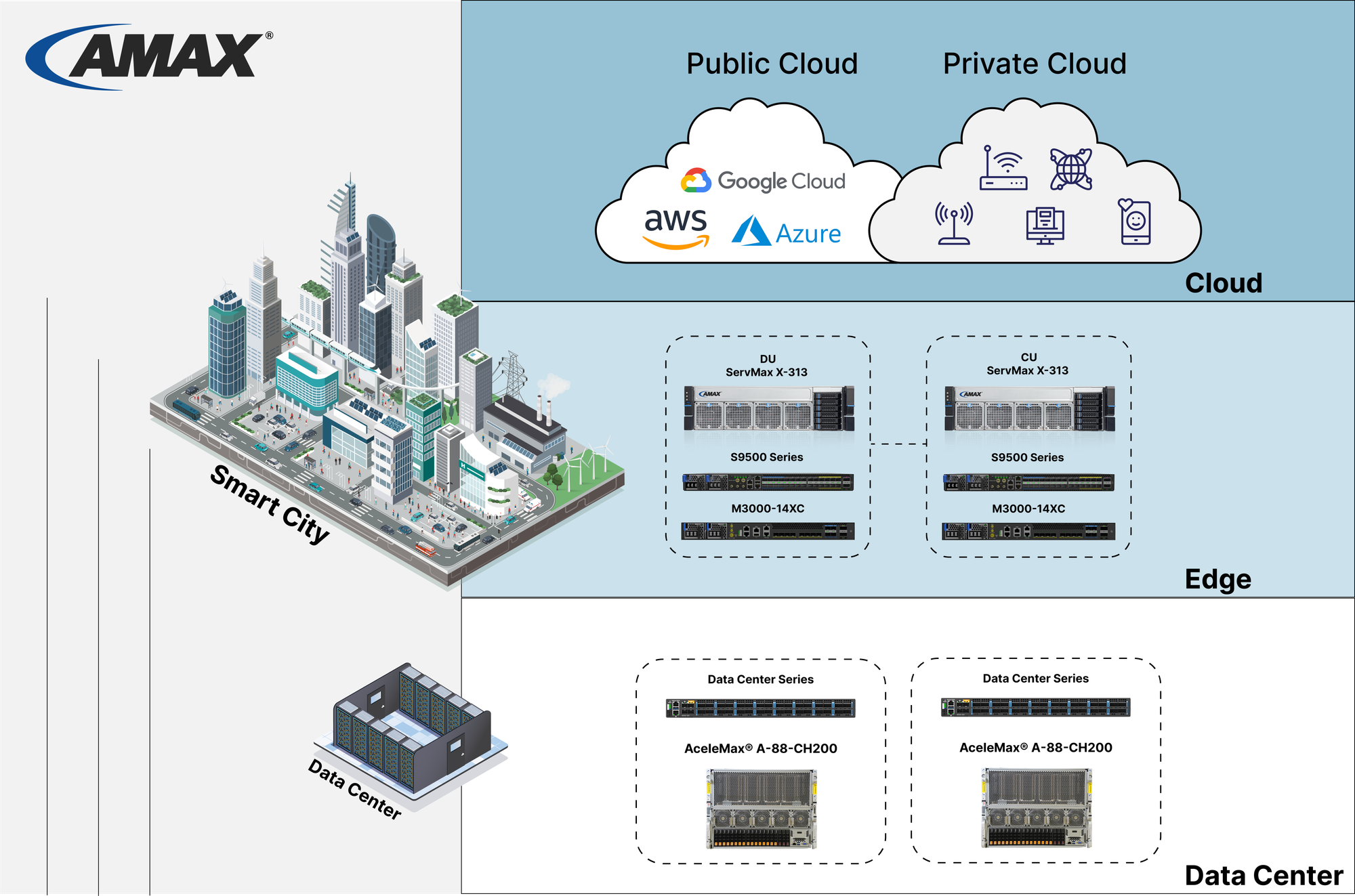

AMAX Edge Computing Solutions Diagram

Introducing AMAX Edge Solutions

Advancements in AI Deployment Capabilities

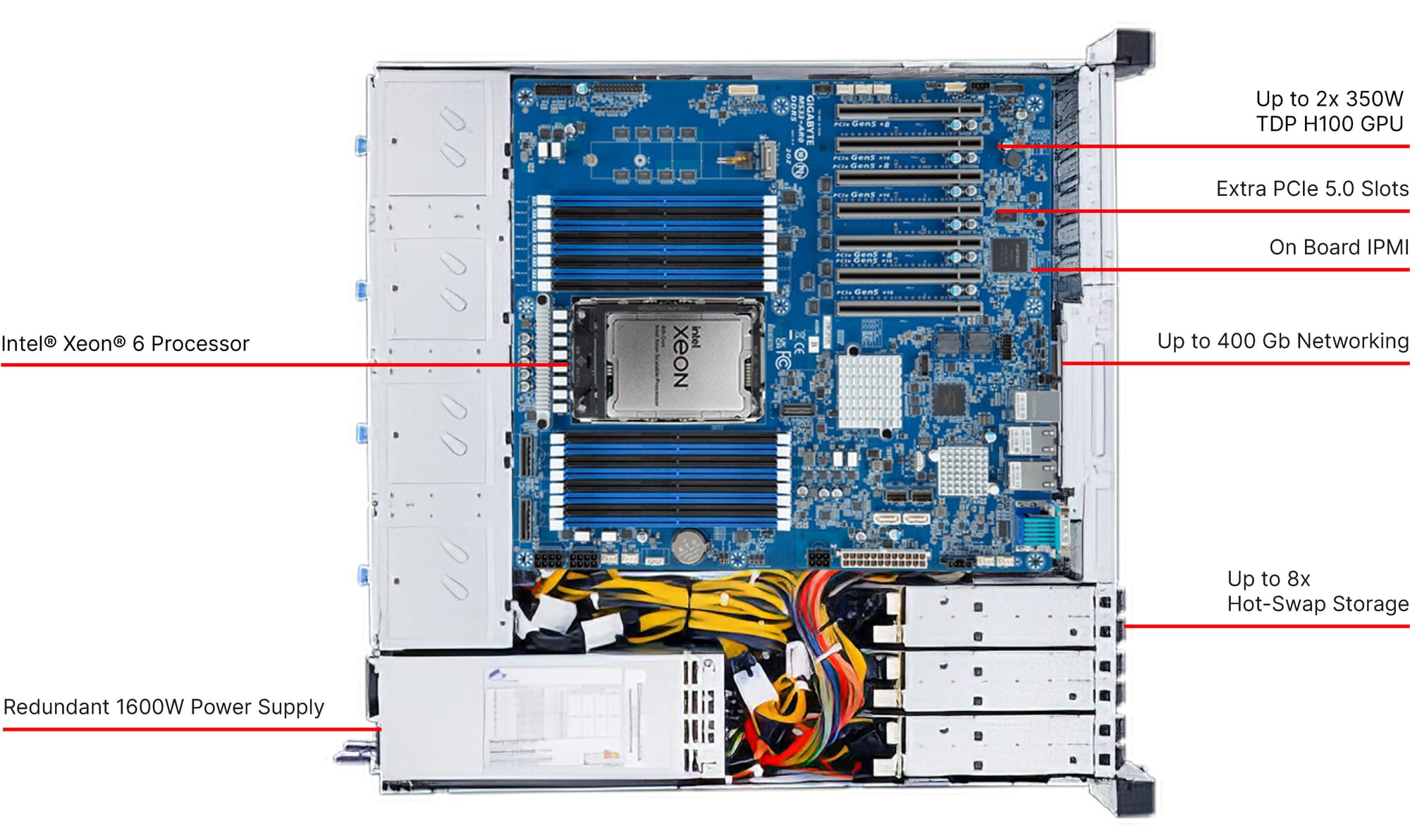

ServMax X-313 - 3U 450mm Ultra-Short Intel GPGPU Edge Computing Server

Our Carrier Grade & short depth 3U and 2U server, are powered with up to 2x NVIDIA H100 Tensor Core GPUs, custom-built for edge AI. Our solutions are designed for scalability and network efficiency. Key features include the Intel® Xeon® 6 processor on a cutting-edge PCIe 5.0 platform, and on board IPMI.

Specifications

Specifications ServMax X-313 ServMax X-212
Processor Intel® Xeon® 6 processor Intel® Xeon® 6 processor
GPU 2x NVIDIA H100 1x NVIDIA H100
Memory 32x DDR5 DIMMs per processor
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB
32x DDR5 DIMMs per processor
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB
Storage 2x SlimSAS with 8 x SATA 6Gb/s ports
2x 7-pin SATA 6Gb/s ports
1x M.2 (2280/22110)
Intel® SATA RAID 0/1/10/5
2x SlimSAS with 8 x SATA 6Gb/s ports
2x 7-pin SATA 6Gb/s ports
1x M.2 (2280/22110)
Intel® SATA RAID 0/1/10/5
Expansion Slots 3x PCIe Gen5 x16 and x8 FHFL slots 2x PCIe Gen5 x16 and x8 slots (2x FHFL)
System Management On-Board ASMB11-iKVM
1 x TPM header with SPI interface
1 x IPMI 2.0
1 x 10/100/1000 management LAN
On-Board ASMB11-iKVM
1 x TPM header with SPI interface
1 x IPMI 2.0
1 x 10/100/1000 management LAN
Networking Integrated 2x 10Gbase-T RJ45 NIC Integrated 2x 10Gbase-T RJ45 NIC
Power Supply Redundant 1600W CRPS Redundant 1600W CRPS
Environment Operation temperature: 10°C ~ 40°C
Operation humidity: 8% ~ 80%
Non-operation temperature: -40°C ~ 60°C
Non-operation humidity: 20% ~ 95% (Non-condensing)
Operation temperature: 10°C ~ 40°C
Operation humidity: 8% ~ 80%
Non-operation temperature: -40°C ~ 60°C
Non-operation humidity: 20% ~ 95% (Non-condensing)
Dimensions 131 x 438 x 450mm, 5.15" x 17.24" x 17.72" 87 x 438 x 450mm, 3.43'' x 17.24'' x 17.72''
Form Factor 3U 2U

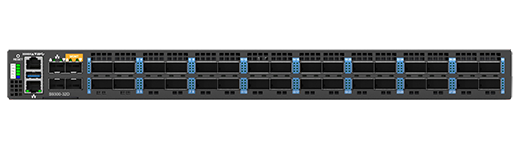

Data Center Series

Data Center Series

This comprehensive suite is tailored for both enterprise edge and hyperscale data centers. It supports service interfaces ranging from 1G to 400G, facilitating adaptable spine & leaf architecture. This flexibility makes it ideal for dynamic data center applications.

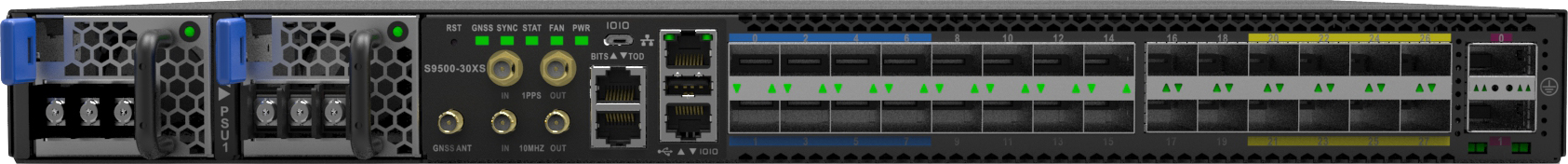

S9500 Series

S9500 Series

These open access routers are designed to offer service providers unparalleled flexibility in constructing transport networks. With class C timing accuracy and diverse network interface options, they enable strategic placement of UPF MEC and 5G-CP functions, enhancing network efficiency and service delivery in private 5G/B5G networks.

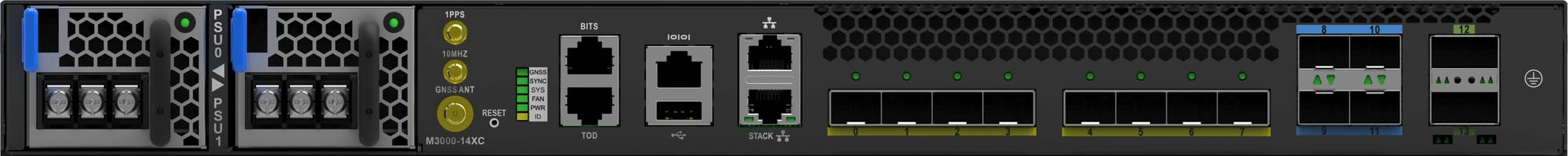

M3000-14XC Fronthaul Multiplexer (FHM)

M3000-14XC Fronthaul Multiplexer (FHM)

Excelling in data and service delivery, the FHM integrates multiple Radio Units into a virtual cell. It empowers telecoms and service providers to optimize CU/DU resource utilization, extending radio coverage and streamlining network operations.

Reshaping Edge Computing

AMAX is redefining Edge-to-Core computing. Our combined efforts have led to the creation of high-performance solutions for advanced network infrastructures. Our solutions cater to the dynamic needs of modern data centers and edge computing, making AMAX your go-to partner for engineering end-to-end total solutions.

🌆
Contact Us for more information about how AMAX can support your edge computing needs.
