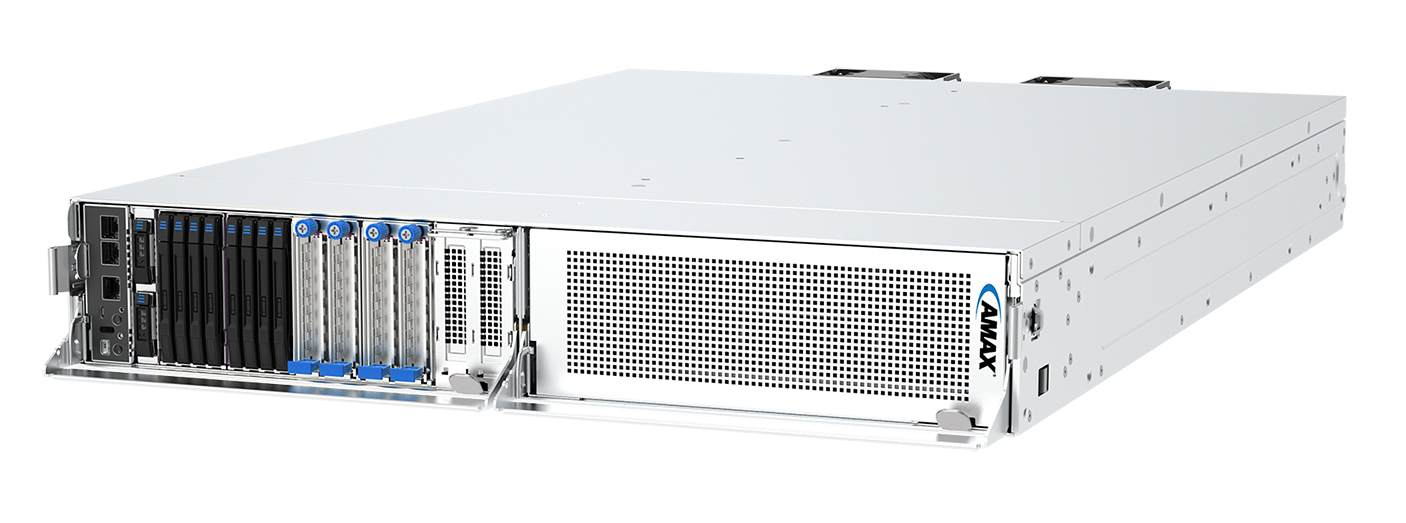

AceleMax® AXG-2242AO

AceleMax® AXG-2242AO
Table of Contents
2OU 2-Socket AMD EPYC 9005 4x NVIDIA H200 SXM5 GPU Liquid Cool Server.

AceleMax® AXG-2242AO

  • 2OU, 2-Socket AMD EPYC™ 9005 GPU server, accelerated by
    NVIDIA HGX™ H200 4-GPU. Build for Supreme Performance and
    Eco-friendly with Liquid cooling solution
  • Cold-plate liquid cooling for CPU and GPU
  • NVIDIA HGX™ H200 with 4x SXM GPUs
  • Dual AMD EPYC™ 9005 series processor (192+192 Cores), up to
    500W TDP
  • 24x DDR5 DIMM slots (1DPC), up to 6400 MT/s
Download Datasheet

Specifications

Category Details
Form Factor • 2OU
Per Node Specifications
Processor • Number of Processors: 2
• Processor Type: AMD EPYC™ 9005 series processors
• Max. TDP Support: 500W
GPU • NVIDIA HGX™ H200 4-GPU
Memory • Total Slots: 24
• Memory Type: 1DPC: DDR5 RDIMM up to 6400 MT/s
• DIMM Capacity: 64GB, 96GB, 128GB
Expansion Slots • 2 x OCP 3.0 NIC x16
• 2 x OCP 3.0 NIC x8
• 2 x PCIe 5.0 ×16 (HHHL)
Storage Bays • 2 x E1.S NVMe SSD (support hardware RAID 1 for OS)
• 8 x E3.S 1T NVMe SSD
Management • Aspeed® AST2600
Networking Interface • 4 x OCP 3.0 NIC
• 1 x BMC management RJ45 (DC-SCM)
• 2 x RJ45 1GbE LAN (DC-SCM)
Front I/O Ports • DC-SCM 2.0-like module (AST2600)
• 1 x BMC management RJ45
• 2 x RJ45 1GbE LAN
• 1 x Micro USB
• 1 x USB 2.0 Type-C
• 1 x Mini display port
• 1 x Power button LED
• 1 x UID button LED
• 1 x BMC reset button
• 1 x System status button
OS Support • Ubuntu 22.04 LTS and above
• RHEL 8.6 and above
• VMware ESXi 8.0
• Linux Enterprise Server (SLES): 15 SP5 and above
• Windows Server 2022
Other Specifications per System/Chassis
Power Supply • ORv3 48VDC Busbar
Fans • 2 x 9256 Fan + Direct Liquid Cooling
Operating Environment • Operating Temperature: 0°C to 40°C
• Storage temperature range: -40°C to 68°C
• Operating and Storage relative humidity: 10% to 90%, non-condensing
Chassis Dimension (W x H x D) • 21.1” (W) × 3.7” (H) × 31.9” (D)
• 537mm (W) × 93.5mm (H) × 809.25mm (D)
