8U DP Intel Xeon 6 CPU 8x NVIDIA SXM GPU Server

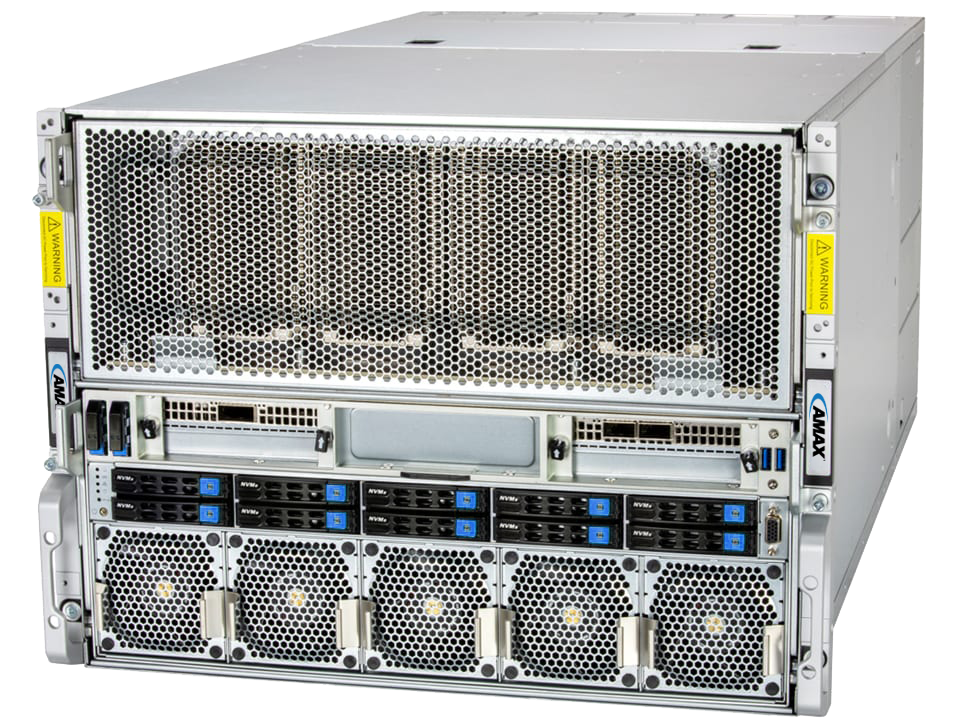

AceleMax® AXG-8281IS
- Dual Intel® Xeon® 6900 series processors with P-cores, up
to 500W TDP, 6UPI - Support for up to 8 onboard SXM GPU accelerator cards
- 24 DIMM slots, ECC DDR5 designed for up to 6400MT/s
(1DPC only) - 2 10G NIC (X710), 1 VGA, 2 USB 3.0, and 1 Dedicated IPMI
- 8 PCIe 5.0 x16 LP and 2 PCIe 5.0 x16 FHHL
- 10 PCIe 5.0 NVMe U.2 and 2 NVMe M.2
Specifications
| Specifications | |
|---|---|
| Form Factor | • 8U Rackmount • Enclosure: 447 x 356 x 843mm (17.6” x 13.8” x 33.2”) • Package: 1300 x 700 x 750mm (51” x 27.6” x 29.5”) |
| Processor | • Dual Socket BR (LGA-7529) • Intel® Xeon® 6900 series processors with P-cores • Up to 128C/256T • Up to 504MB Cache per CPU |
| GPU | • Max GPU Count: Up to 8 onboard GPUs • Supported GPU: NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB) • CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect • GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch™ |
| System Memory | • Slot Count: 24 DIMM slots • Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM • Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM |
| Drive Bays Configuration | Default: Total 10 bays: - 10 front hot-swap 2.5” PCIe 5.0 x4 NVMe drive bays • M.2: 2 M.2 NVMe slots (M-key) |
| Expansion Slots | Default: • 8 PCIe 5.0 x16 LP slots • 2 PCIe 5.0 x16 FHHL slots |
| On-Board Devices | • Chipset: System on Chip • Network Connectivity: 2 RJ45 10GbE with Intel® X710-AT2 |
| Input / Output | • 1 VGA port |
| System Cooling | • Fans: 14 heavy-duty fans with optimal fan speed control |
| Power Supply | • 6x 5250W Redundant (3 + 3) Titanium (certification pending) Level (96%) power supplies |
| System BIOS | • BIOS Type: AMI 32MB SPI Flash EEPROM |
| Management | • AMAX Cloud Composer • AMAX Server Manager (ASM) • AMAX Diagnostics Offline (ADO) • AMAX Thin-Agent Service (TAS) • AMAX Server Automation Assistant (AAA) New! |
| PC Health Monitoring | CPU: • Monitors for CPU Cores, Chipset Voltages, Memory • 8+4 Phase-switching voltage regulator FAN: • Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors Temperature: • Monitoring for CPU and chassis environment • Thermal Control for fan connectors |
| Operating Environment | • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
