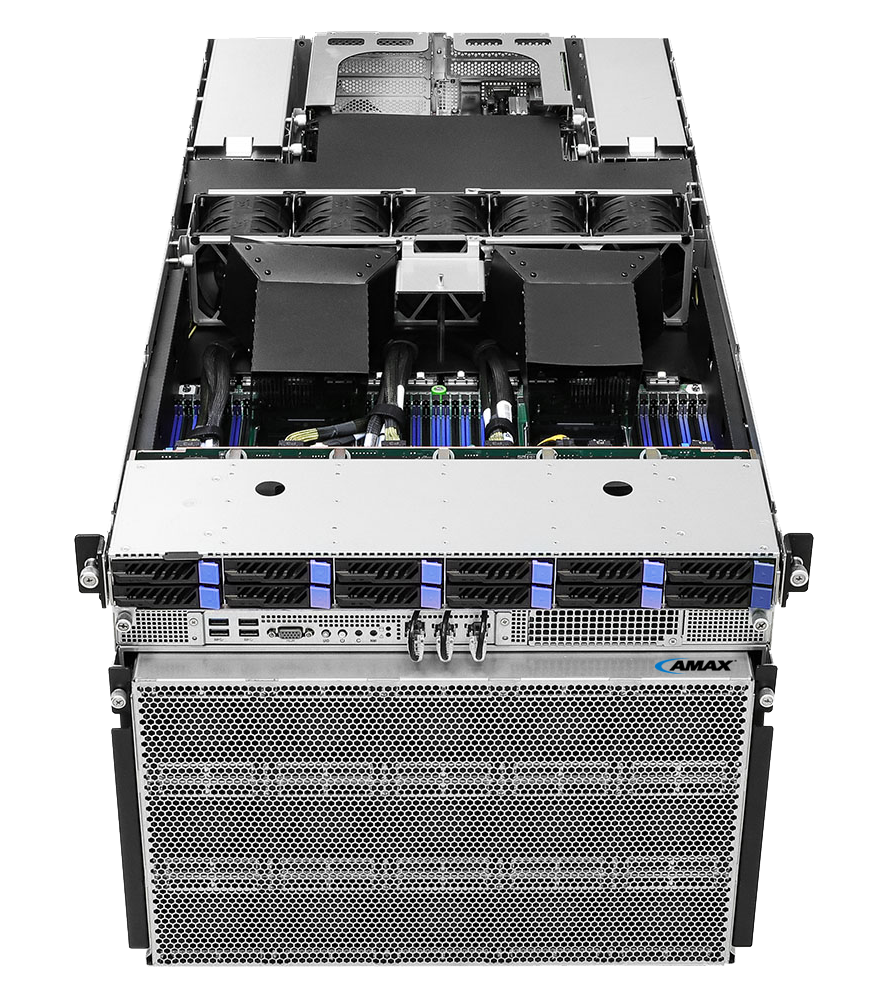

8U Dual Socket Intel Xeon 6 Processors 8x NVIDIA HGX B200 GPU Server.
AceleMax® AXG-828IS2
- 8U Rackmount with 6+6, 80-PLUS Titanium, 3000W CRPS
- NVIDIA HGX B200 8-GPU with NVIDIA NVSwitch™
- Optimized performance of GPU-to-CPU, GPUDirect RDMA NIC, and GPUDirect Storage by PCIe Switch Synthetic Mode
- Dual Socket E2 (LGA 4710), supports Intel® Xeon® 6700P-series,
6500P-series, and 6700E-series processors - 16+16 DIMM slots (2DPC), supports DDR5 RDIMM, RDIMM-3DS
- 8 HHHL PCIe5.0 x16, 2 FHHL PCIe5.0 x16
Specifications
| Category | Details |
|---|---|
| Form Factor | • 8U Rackmount |
| Front Panel | • Buttons: Power button w/ LED, Reset button, NMI button, UID button • LEDs: System fault LED, HDD activity LED • I/O Ports: – 2 RJ45 (1GbE) by Intel i350, shares with Rear IO – 1 dedicated IPMI, shares with Rear IO – 4 Type-A (USB3.2 Gen1) – 1 DB15 (VGA) |
| External Drive Bay / Storage | • Front Side Drive Bay: – 8 Hot-swap 2.5” NVMe (PCIe5.0 x4) from PCIe Switch – 2 Hot-swap 2.5” NVMe (PCIe5.0 x4) from CPU • Internal Side: 1 M-key (PCIe5.0 x4), supports 22110/2280 [CPU0] |
| Power Supply | • Type: 6+6 CRPS • Output: 3002.4W @ 220-240Vac, 2900W @ 200-220Vac • Efficiency: 80-PLUS Titanium • AC Input: 200-240Vrms, 50/60Hz |
| System Fan | • 29 PWM 80x80 mm fans + 4 PWM 40x40 mm fans |
| GPU | • NVIDIA® HGX B200 8-GPU with NVIDIA® NVSwitch™ |
| CPU | • Supports Intel® Xeon® 6700P-series, 6500P-series, and 6700E-series |
| Socket | • 1+1 Socket E2 (LGA 4710) |
| Chipset | • System on Chip |
| System Memory | • 16+16 DIMM slots (2DPC) • DDR5 RDIMM • Max Capacity: 128GB per RDIMM • Frequency: 6400MT/s (1DPC), 5200MT/s (2DPC) • Voltage: 1.1V |
| PCIe Expansion Slots | • Rear: – 8 x HHHL PCIe5.0 x16 – 2 x FHHL PCIe5.0 x16 |
| Ethernet | • Intel® i350: 2 x RJ45 (1GbE) |
| Server Management | • BMC: ASPEED AST2600, IPMI2.0 with iKVM and vMedia • IPMI Dedicated GLAN: 1 x Realtek RTL8211F |
| Graphics | • Controller: ASPEED AST2600 • VRAM: DDR4 512MB |
| Rear I/O | • 1 x UID button • 1 x DB15 VGA • 2 x Type-A USB3.2 Gen1 • 2 x RJ45 (1GbE) shared with Front Panel • 1 x dedicated IPMI shared with Front Panel |
| System BIOS | • AMI UEFI BIOS; 512Mb SPI Flash ROM • Features: Plug and Play, ACPI 4.0+, SMBIOS 3.4+, AMAX Rack instant flash |
| Hardware Monitor | • Temperature: CPU, MB, Card side sensing • Fan: – Fan Tachometer – CPU Quiet Fan (auto-adjust by CPU temp) – Multi-Speed Control |
| Environment | • Operating temp: 10°C ~ 35°C • Non-operating temp: -40°C ~ 70°C • Non-operating humidity: 20% ~ 90% (non-condensing) |
| Dimensions | • 930 x 448 x 353.6mm • 36.6” x 17.6” x 13.9” |
