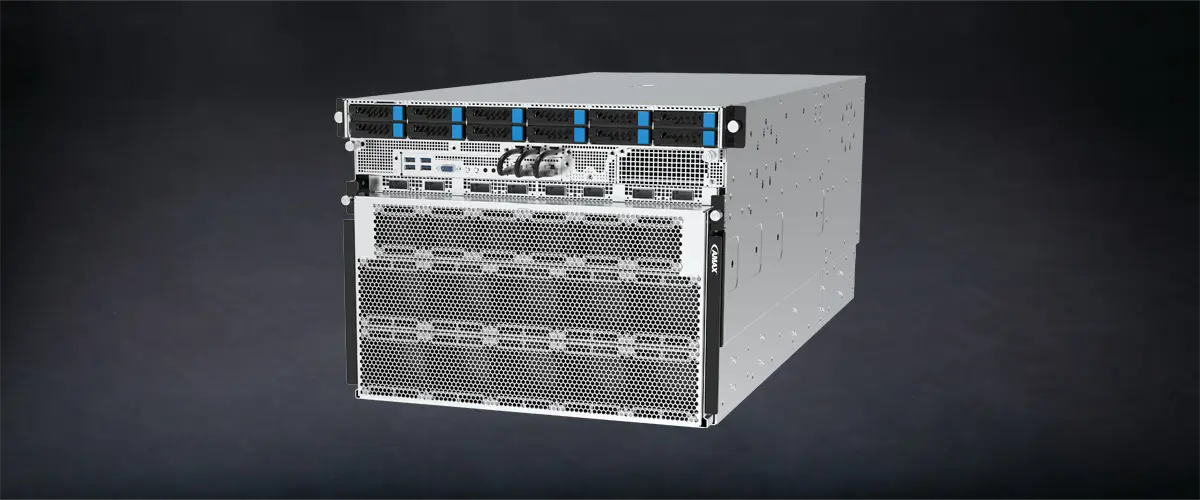

8U DP Intel® Xeon® 6 with 8x NVIDIA HGX B300 GPUs.

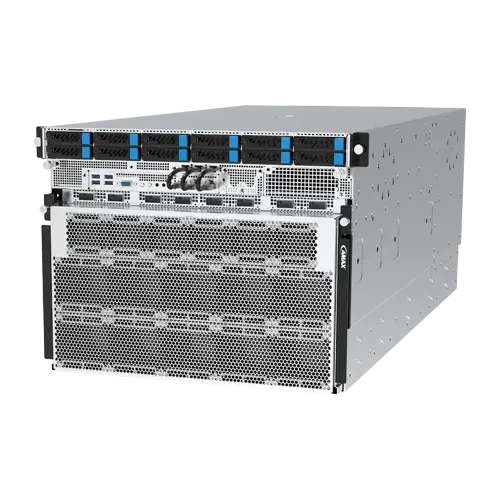

AceleMax® AXG-828U
- Dual Intel Xeon® 6 Pocessors, TDP up to 500W
- NVIDIA HGX™ B300 8-GPU with NVIDIA NVSwitch™
- 32x DDR5 slots, up to 6400 MT/s
- 12x U.2 NVMe
- 6+6 3000W Titanium CRPS
Specifications
| Category | Details |
|---|---|
| Form Factor | • 8U Rackmount |
| Processor |
• CPU: Intel® Xeon® 6700E/6700P-series processors • Socket: Dual Socket E E2 (LGA 4710) • TDP: 350W • Chipset: System on Chip |
| GPU | • NVIDIA HGX B300 16-GPU with NVSwitch |
| Memory |
• DIMM Slots: 16 + 16 DIMM slots (2 DPC) • Supported Type: 288-pin DDR5 RDIMM / RDIMM-3DS • Frequency: 5200 MT/s (2 DPC) / 6400 MT/s (1 DPC) • Capacity: RDIMM up to 128GB (2R), RDIMM-3DS up to 256GB |
| Operating System | • Windows Server, Linux, VMware ESXi |
| Drive Bays / Storage |
• Hot-swap: 12 × 2.5” Storage Bays • Internal: 1 × M.2 (PCIe x2) |
| Expansion Slots | • Rear: 4 × FHHL slots from switch board (PCIe x16) |
| Rear I/O |
• RJ45: – 2 RJ45 (1GbE) by Intel i350-AM2, shares with front panel – 1 dedicated IPMI LAN, shares with front panel • USB: 2 × Type-A USB3.0 • VGA: 1 × DB15 |
| Front I/O |
• LEDs: – System fault LED – HDD activity LED • I/O Ports: – 8 × OSFP 800 Gbps IB – 2 × RJ45 1G Base-T via Intel i350-AM2 – 1 × RJ45 dedicated IPMI via AST2600+RTL8211F – 1 × DB15 via AST2600 – 4 × USB 3.0 |
| Power Supply |
• Redundancy: 6 + 6 • Output: 3000W • Efficiency: 80-PLUS Titanium • Input Range: 100–240V AC / 47–63 Hz |
| System Management |
• Controller: ASPEED AST2600 • Features: IPMI 2.0, Remote KVM, Virtual Media Mount – HTML5 Web GUI – PXE boot from IPMI Command – Remote power on/power-off from IPMI command or Web Console |
| System BIOS | • AMI UEFI BIOS; 256 Mb (32 MB) SPI Flash ROM |
| Environment |
• Operating Temperature: 10 °C ~ 35 °C • Non-operating Temperature: –40 °C ~ 70 °C |
| Dimensions |
• 448 mm × 930 mm × 353.6 mm • 17.64” × 36.61” × 13.92” |
