9U DP Intel® Xeon® 6 with 8x NVIDIA HGX B300 GPUs.

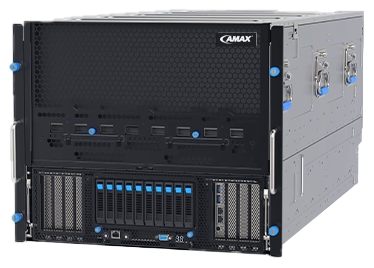

AceleMax® AXG-928U
- Powered by dual Intel® Xeon® 6700/6700P processors, supporting a 350W TDP
- Seamless GPU-to-GPU interconnect via NVIDIA® NVLink™, providing 1800GB/s bandwidth for optimized scalability
- Modular design with minimal cable usage, enhancing assembly speed and thermal efficiency
- Integration of advanced NVIDIA technologies, leveraging the full capabilities of NVIDIA GPUs, NVIDIA BlueField®-3 DPUs, NVIDIA® NVLink™, and networking
Specifications
| Category | Details |
|---|---|
| Form Factor | • 9U |
| Processor | • 2 × Intel® Xeon® 6 Processors, TDP 350W |
| PCIe Switch | • PEX89144 ×1 |
| GPU |
• HGX BLACKWELL ULTRA B300 • GPU TDP: 1100W per GPU |
| Memory | • 32 × 5600 DDR5 DIMM slots (Max 4TB) |
| Expansion Slots | • 5 × PCIe Gen5 slots (4×X16 + 1×X8) |
| Storage | • Up to 10 × 2.5” hot-swap U.2 NVMe bays |
| Networking | • Embedded on GPU 8×CX8 800G |
| LAN | • 2 × 10G X710 |
| Cooling Solution |
• [Air cooling] • GPU fan: 15 × fans (80×80) • CPU fan: 6 × 6056 |
| Power Supply | • 5+5 redundant 3200W 80 PLUS Titanium |
| Dimensions |
• 945 × 447 × 394.5 mm (9U) • 37.20” × 17.60” × 15.53” |
