1U Single Socket Intel® Xeon® D Processor CU/DU/UPF Server.

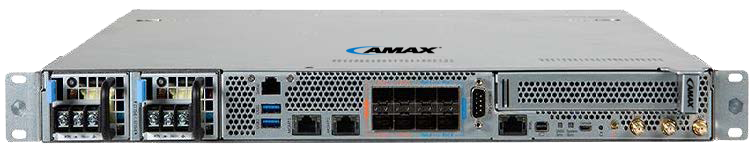

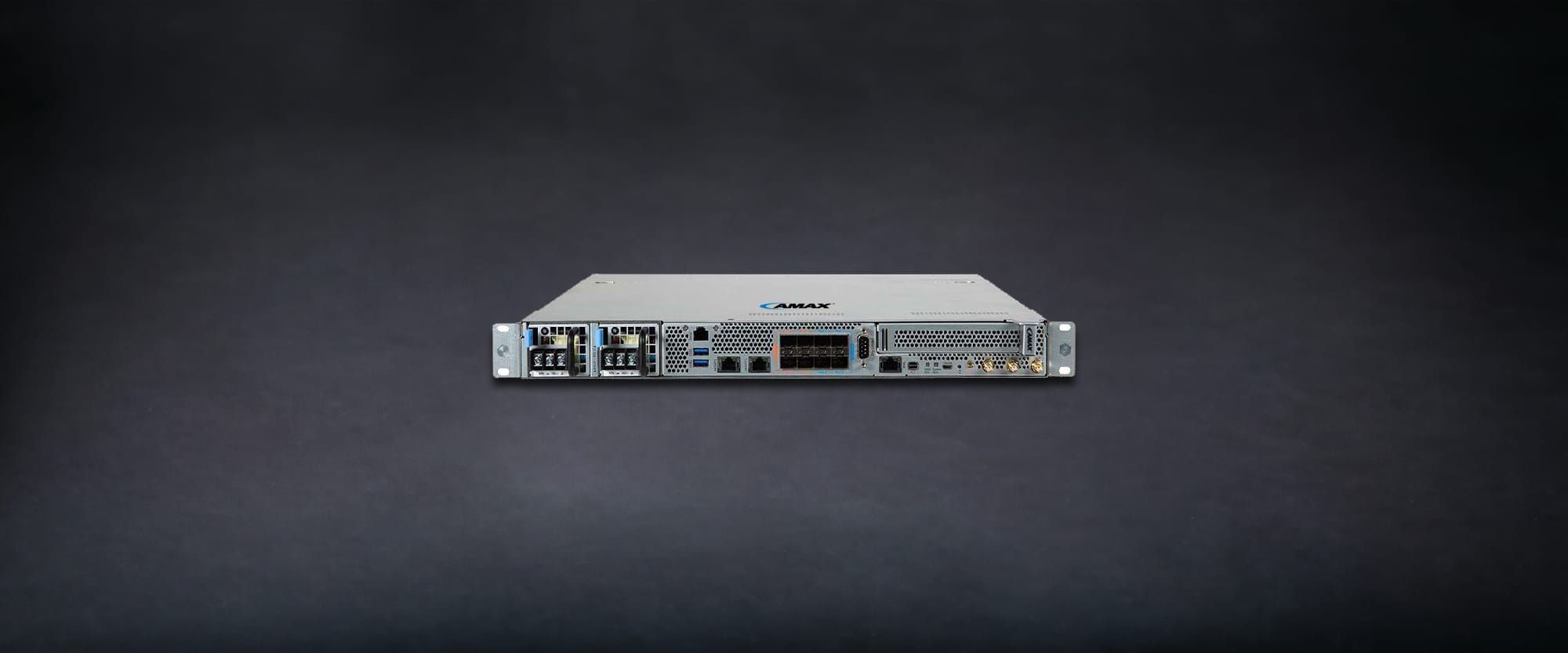

ServMax® X-110D
- 1U short-depth Compact size Server optimized for deployment
in edge locations - Deployed as 5G O-RAN DU, CU and UPF Server
- Intel Xeon-D single processor (SoC) solution
- Integrated with FEC Accelerator, GNSS DPLL module
- Built-in QAT engine (Xeon-D processor) to compress and
encrypt data
Specifications
| Category | Details |
|---|---|
| Form Factor | • 1U |
| Processor | • Number of Processors: 1 • Processor Type: Intel® Xeon® D-2700: – D-2786NTE (18-Core; extended temp; built-in NIC + QAT); for CU Server (for operation under -5 ~ 55°C) – D-2796TE (20-Core; extended temp; built-in NIC); for DU Server (for operation under -5 ~ 55°C) |
| Max. TDP Support | • 125W |
| Memory | • Total Slots: 8 • Memory Type: DDR4 up to 2933 MT/s • DIMM Capacity (GB per DIMM): 64GB |
| Expansion Slots | • 1 x PCIe 4.0 x16 slot for FHHL add-in card |
| Storage Bays | • n/a |
| Onboard Storage | • 2 x M.2 SSDs (PCIe3.0), 2280/22110 |
| Management | • Aspeed® AST2600 management controller |
| Security | • 1 x TMP 2.0 |
| Networking Interface | • 8 x 10GbE (SFP+), or 4 x 25GbE (SFP28) • 1 x 1000BASE-TX RJ-45 port (supports NC-SI for BMC management) • 1 x 1000BASE-TX RJ-45 port |
| Front I/O Ports | • 2 x USB 3.0 port on front panel • 1 x Console port: Front accessible UART Micro USB • 1 x Mini-DP for video output • 1 x Dry Contact: 1 x DB9 Connector on front panel • 1 x RJ-45 connector on front panel (RS-232 serial port) |
| Rear I/O Ports | • n/a |
| OS Support | • RedHat 9.0 • Windows Server 2022 (CU SKU only) |
| Power Supply | • 2 x -48VDC Redundant Power Supply (Hot-swappable), or 2 x 110–240VAC Redundant Power Supply (Hot-swappable) |
| Operating Environment | • Operating Temperature: -5°C to +55°C • Storage temperature range: -40°C to +60°C • Transportation temperature range: -40°C to +60°C • Operating and Storage relative humidity: 10% to 90% (non-condensing) |
| Chassis Dimension (W x H x D) | • 438mm (W) x 43mm (H) x 430mm (D) / 17.2” (W) x 1.7” (H) x 17.0” (D) |
