Supercharge AI, lower TCO

NVIDIA GB200 NVL72

High-Density.
Liquid-Cooled.
Rack-Scale AI.

Liquid-Cooled GB200 NVL72 Rack-Scale Solutions

Request a Quote
Solution Portfolio
Centered Text Example
Experience Liquid-Cooled AI
Three Features Layout
Image 1

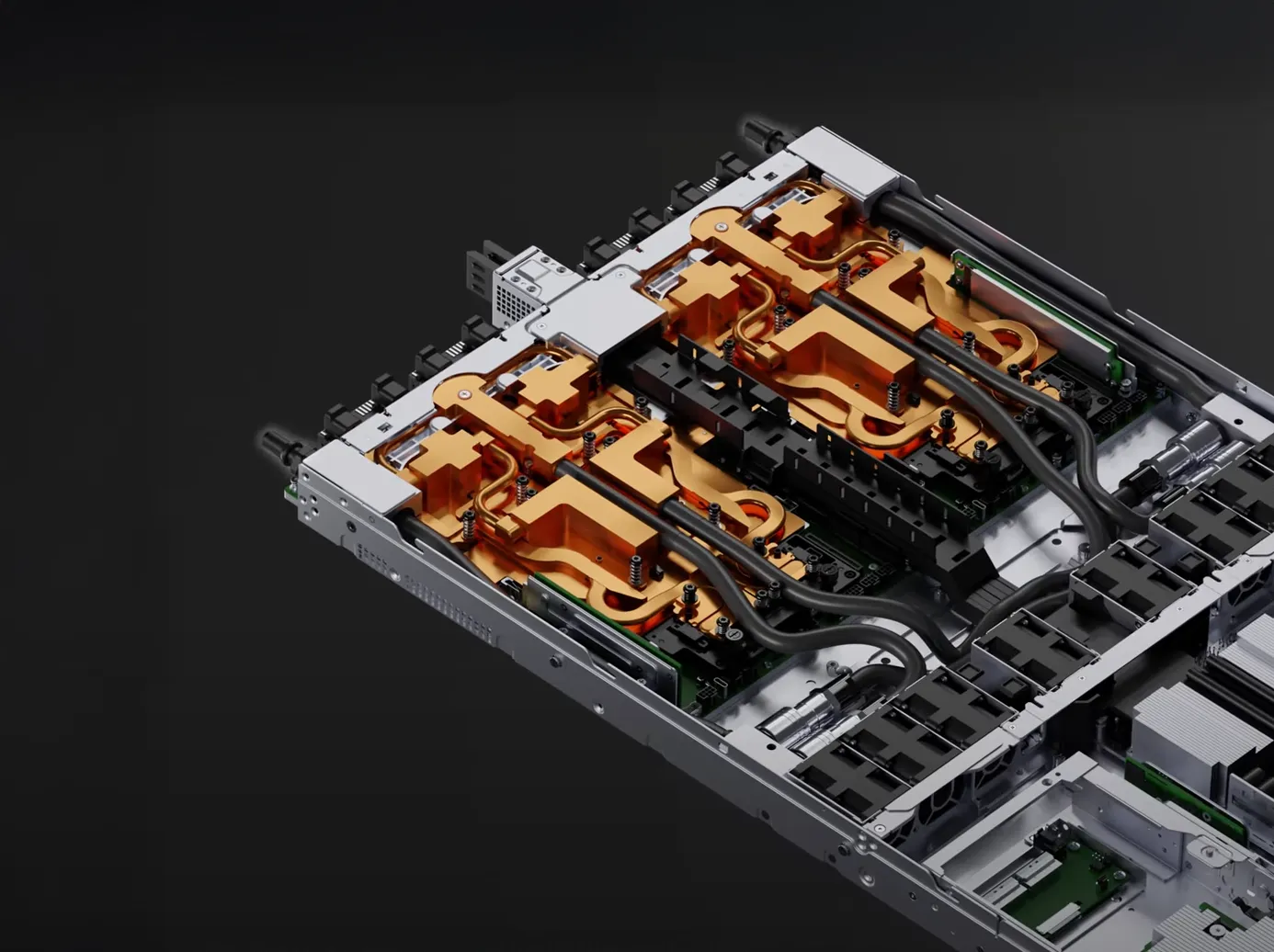

Grace Blackwell Architecture

Each tray features 2 Grace CPUs and 4 Blackwell GPUs, interconnected with NVLink for peak AI performance in a compact form factor.

Direct-to-Chip Cooling

Liquid flows across cold plates mounted directly to CPUs and GPUs, pulling heat away from the source for efficient thermal transfer.

Image 2

Flexible Deployment

Supports sidecar cooling configurations for flexible deployment across a range of data center environments.

Centered Text Example
Cooling Options for Every Enviornment

Liquid Cooling Without Facility Water

With our Liquid-to-Air Cooling solutions heat is transferred from the tray’s cold plates into a closed liquid loop, then expelled through a sidecar unit into the surrounding air via CRAC. Ideal for data centers without infrastructure designed for liquid cooling.

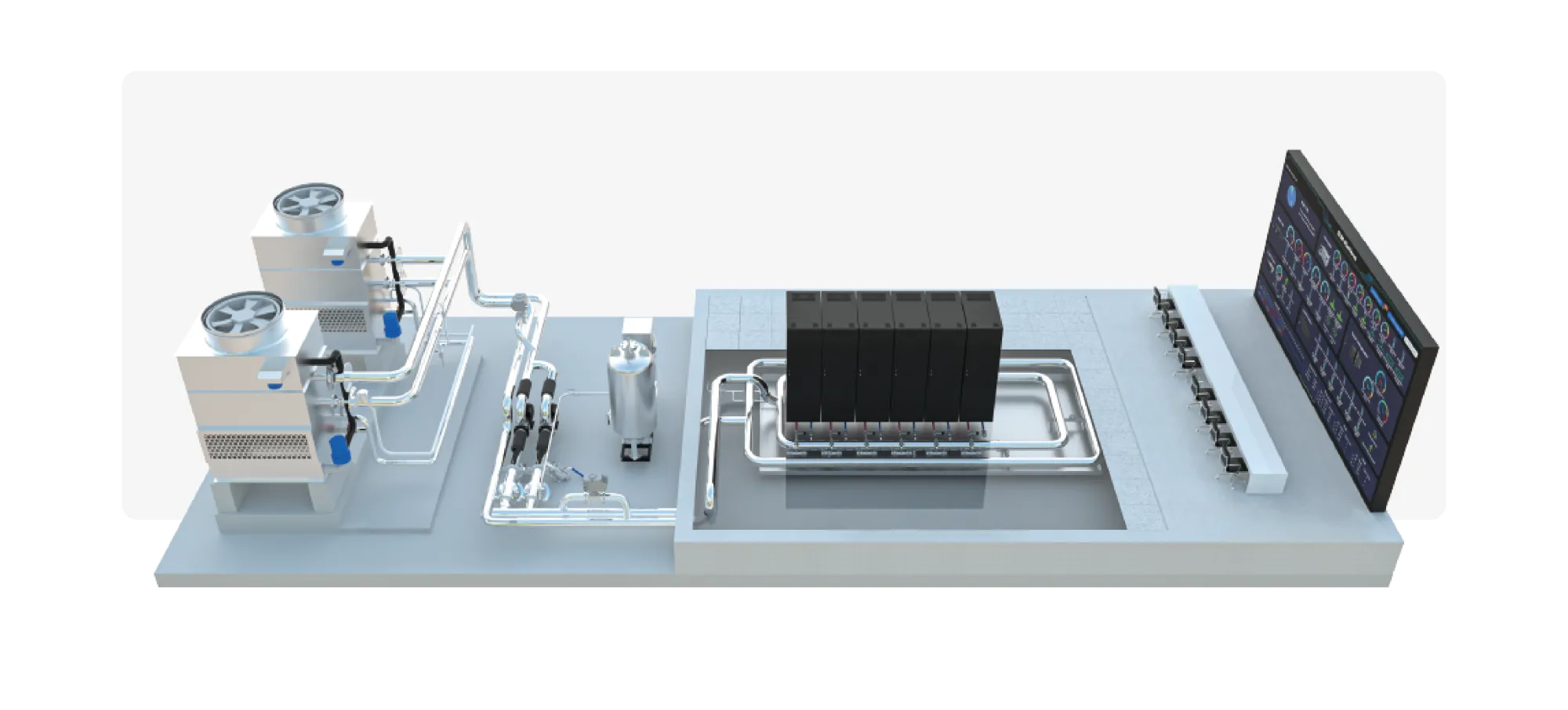

Liquid-to-Liquid Cooling

Liquid Cooling with Facility Water

For full liquid-to-liquid cooling, the in-row CDU (sidecar) routes liquid coolant from the trays to an external heat exchanger or cooling tower. This option is designed for facilities equipped with water infrastructure.

Centered Text Example
Designed for Next-Generation AI
Rack Labels Proper Left Line Alignment

Front View

Front View Rack Layout
Management Switch x3
Power Shelf x3
Compute Tray x10
Switch Tray x9
Compute Tray x9
Leak Detection System
Power Shelf

Rear View

Rear View Backside
Rack Busbar
Cool Liquid In
Warm Liquid Out

Centered Text Example
AMAX as Your Total IT Solution Provider
Key Applications - Discover Our Expertise
AMAX Expertise
AMAX Solution Design
Engineered for Performance

Rack-Scale Cluster Design▼

MGX-based architecture with NVIDIA NVLink fabric, scalable up to 72 GPUs per rack.

Optimized Power and Cooling▼

Supports up to 240kW per rack with dual CDU configurations. Liquid-to-air and liquid-to-liquid options available.

Fully Managed Deployment▼

Factory staging, burn-in, and validation included. Delivered rack-ready to your colocation or facility.

On-Site Setup and Support▼

AMAX provides hands-on cluster bring-up, networking integration, and post-deployment assistance.
Why AMAX Discover Our Expertise
Begin Your Deployment
AMAX's Expertise

Design to Deployment▼

From initial planning through on-site implementation, AMAX handles the complete delivery process.

Colocation Ready▼

Deploy with your preferred colocation provider or a trusted partner, with AMAX managing infrastructure setup and support.

Cloud-to-On-Prem Transition▼

We help organizations reduce cost and regain control by moving from public cloud to dedicated on-prem infrastructure.

Support Without Gaps▼

Our on-site hosting service provides immediate access to compute resources while permanent systems are deployed.
AMAX Expertise
Testimonial Carousel

"We feel well-supported on every aspect of our product development and expect further collaboration with AMAX."

Samsung Logo

"The AMAX GPU solution is working beautifully and we were very impressed with the quality."

Microsoft Logo

"With the AMAX GPU cluster, the performance factor increase has been roughly 120-150x!"

Argonne Logo

Centered Text Example
LiquidMax® GB200 NVL72 ALC-B4872 AI POD
Product Feature
HGX H200 4x Pod Logo

Powered by NVIDIA MGX GB200 NVL72

Request a Quote
Product Specifications
NVIDIA HGX B200 Server
Compute
36x Grace Blackwell Superchips (72 GPUs, 36 CPUs)
Memory
13.5TB HBM3e + 17TB LPDDR5X per rack
Cooling
Up to 240kW per CDU (L2A or L2L)
Networking
ConnectX-7 + BlueField-3 DPUs
Interconnect
NVLink Gen 5 + NVSwitch
Rack Power
Supports high-density 1400A busbar
