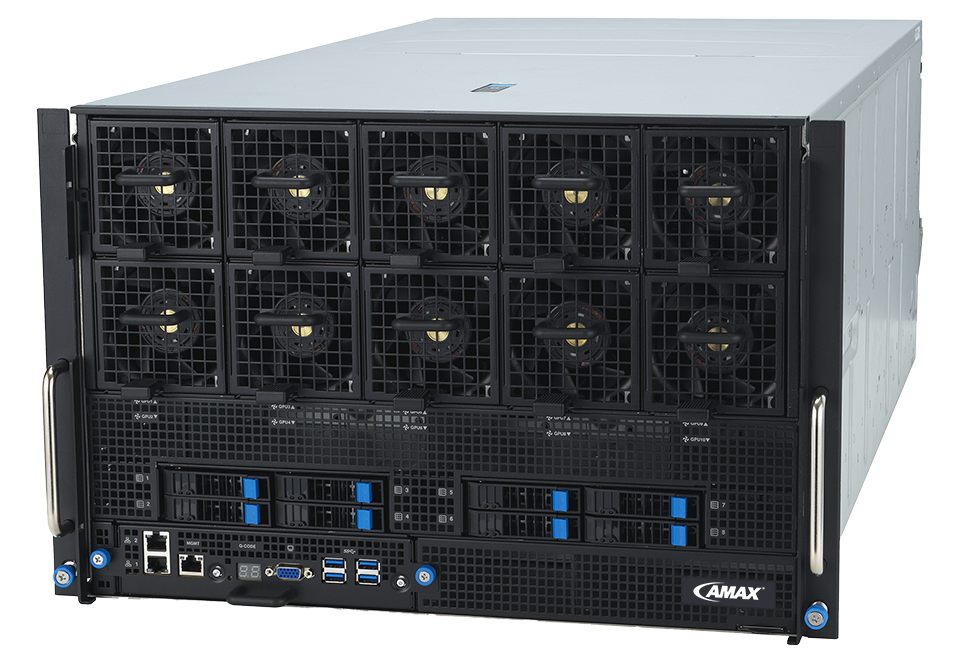

AceleMax® AXG-728AM

AceleMax® AXG-728AM
Table of Contents
7U Dual Socket AMD EPYC 9005 Series Processors 8x AMD Instinct™ MI325X.

AceleMax® AXG-728AM

  • Powered by dual AMD next Gen processors, with DDR5
    RDIMM up to 6000MHz 1DPC
  • CPU maximum TDP up to 400W
  • Powerful Performance
  • Enhanced IT-infrastructure management
Download Datasheet

Specifications

Specifications
Processor Support • 2 x AMD EPYC 9005 Processors (Up to TDP 400W)
Core Logic • (INTEGRATED I/O – NO CHIPSET)
Memory • Total Slots: 24x DDR5 DIMM slots, up to 6000MHz (1DPC)
• Capacity: (12-channel per CPU, 12 DIMM per CPU)
• Memory Type: Maximum up to 3TB
• Memory Size: DDR5 6400/5600 RDIMM 128GB, 96GB, 64GB
Expansion Slots • Total PCI/PCI-X/PCI-E/PIKE Slots: Up to 11 PCIe slots
Slot Type:
   [89104 PCIe Switch (directly]
   • 8 x PCIe Gen5 x16 (LP, HL) – GPU group
   [89104 PCIe Switch (directly]
   • 1x PCIe Gen5 x16 (FH, HL) – CPU 1 extension
   • 1x PCIe Gen5 x8 (FH, HL) – CPU 1 extension
[CPU directly]
   • 1x PCIe Gen5x16 (FH, HL) (CPU2)
Disk Controller • NVMe Controller: 2 x M.2 Gen5 x4 (22110, 2280, 2260)
Optional kits:
   • Broadcom MegaRAID 9540-8i
   • Broadcom MegaRAID 9560-16i
SATA/SAS Controller:
Optional kits:
   • AMAX PIKE II 3008-8i/3108-8i
   • Broadcom MegaRAID 9540-8i
   • Broadcom MegaRAID 9560-16i
Storage Bays • Internal: 10 x 2.5" hot-swap bays
(8 NVMe, 2 NVMe/SATA/SAS*)
• A or S will be hot-swappable:
   • 8 x NVMe + 2 x NVMe/SATA*/SAS*
(*HBA/RAID card is required to support SAS hard drives)
Networking • LAN: 1 x Management Port
Graphic • VGA: Aspeed AST2600 64MB
Front I/O Ports • 4 x USB3.2 Gen1 ports
• 1 x VGA port
• 2 x 10Gb RJ45 LAN module (Intel-x710 Based)
• 1 x Mgmt LAN
• 1 x locate button
• 1 x power button
Rear I/O • 1 x locate button
• 1 x power button
Switch/LED Front:
• 1 x Power Button/LED
• 1 x Location Button/LED
• 1 x Message LED
• 1 x Q-Code/Port 80 LED
Rear:
• 1 x Location LED
• 1 x Power Button/LED
Management Solution • Software: AMAX Control Center (Classic)
• Out of Band Remote Management: On-Board ASM11-iKVM for KVM-over-IP
Power Supply (following different configuration by region) • 4+2 Redundant 80 PLUS 3000W Titanium PSU
Environment • Operation temperature: 10°C ~ 35°C
• Non-operation temperature: -40°C ~ 70°C
• Non-operation humidity: 20% ~ 90% (Non condensing)
Dimensions • 885mm x 447mm x 306.65mm
• 34.8” x 17.6” x 12”
