Dual 5/4th Gen Intel® Xeon® Scalable Series Processors.

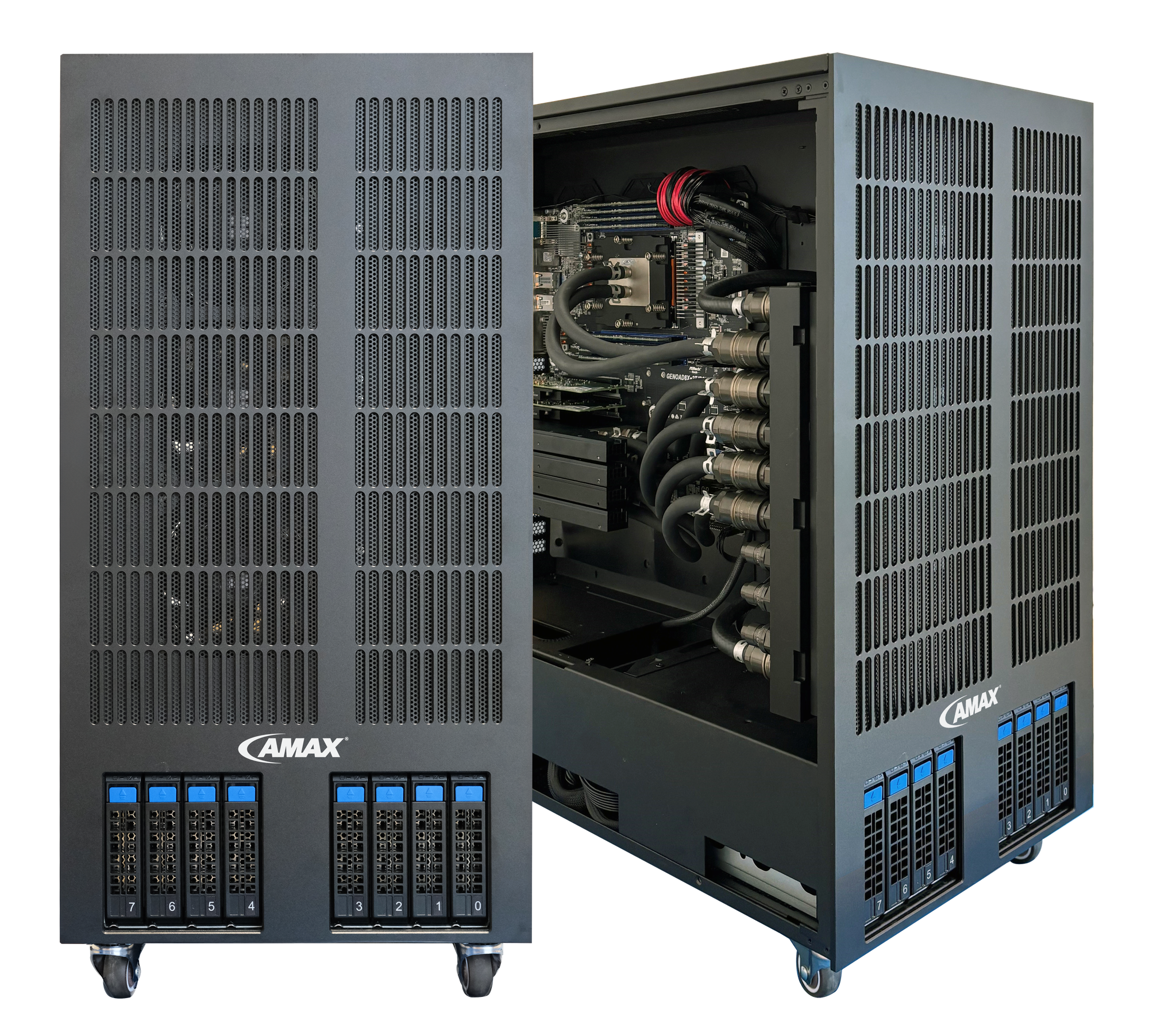

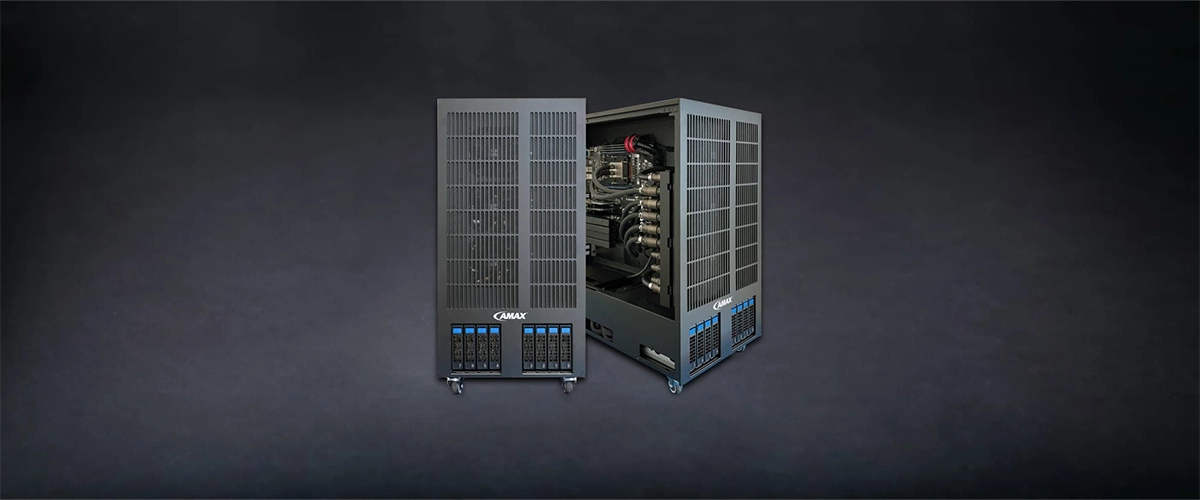

LiquidMax® LX-5b Workstation
The LiquidMax™ LX-5b is equipped with 4 liquid-cooled GPUs, the system achieves a hybrid floating-point performance
up to 5940 TFLOPS, and GPU memory bandwidth exceeds 2000 GB/s. The size of the chassis has reduced by 6% compared to the last version (LA/X-5a). Parallel CPU and GPU, for more convenient maintenance.
- Fully enclosed liquid cooling design
- Supports up to 4 liquid-cooled GPUs
- Full liquid cooling for both CPU and GPU
- Operates at full load with only 50dB noise at 30°C ambient
temperature
Specifications
| Category | Details |
|---|---|
| Processor Support | • Dual 5th/4th Gen Intel® Xeon® Scalable series processor, cTDP up to 350W |
| GPU |
• Up to 4x NVIDIA RTX PRO™ 6000 Blackwell GPUs • OR Up to 4x GeForce RTX™ 50 Series GPUs |
| Core Logic | • Intel C741 Chipset |
| Memory Capacity | • 16 × DIMM (8-channel per CPU, 8 DIMM per CPU), Up to 2TB per CPU socket |
| Expansion Slots |
• Up to 6 slots: – 5 x PCIe Gen5 x16 link – 1 x PCIe Gen5 x8 link |
| Network Connectivity |
• 2 x 10GbE LAN ports (RJ45) • 1 x Mgmt Port |
| I/O Ports |
• 2 x USB3.2 Gen1 ports • 1 x Serial Port • 1 x VGA Port • 2 x 10GbE LAN ports (RJ45) • 1 x Mgmt Port |
| Storage |
• 10 x SATA 6Gb/s ports • 2 x M.2 connector (2280, 22110) |
| Chassis | • Tower |
| Power Supply | • 2 x 1600W power supply |
| System Dimensions (H x W x D) | • 660mm x 380mm x 611mm |
