LiquidMax® LA-5b

Single AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 Series Processors

LiquidMax® LA-5b

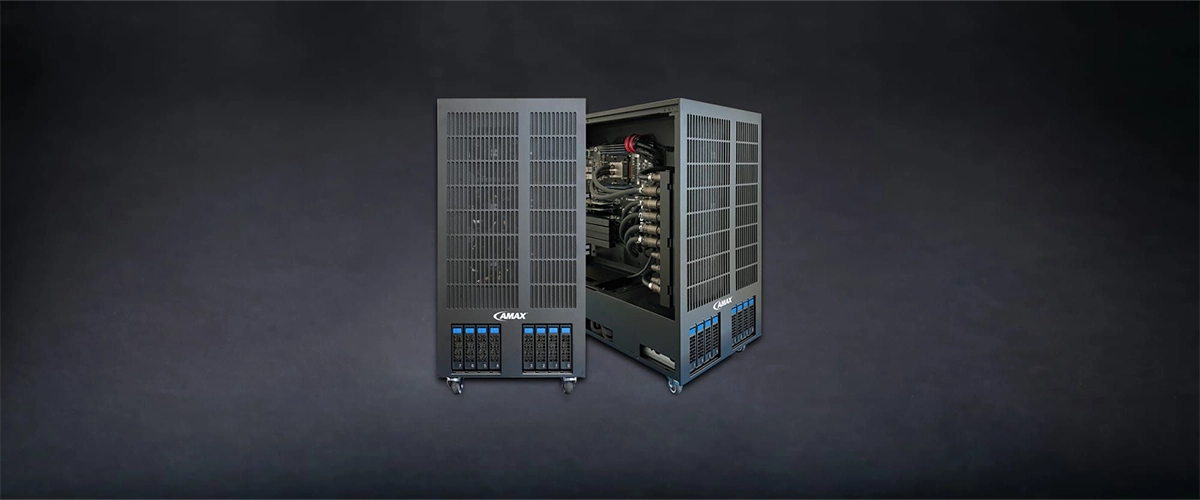

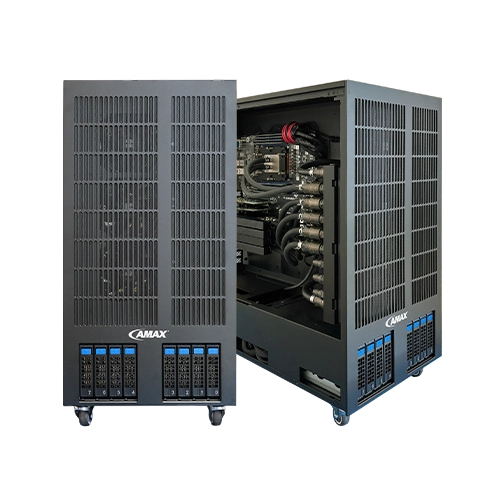

LiquidMax® LA-5b Workstation

Single AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97×4 Series Processors

The LiquidMax® LA-5b is equipped with 4 liquid-cooled GPUs, the system achieves a hybrid floating-point performance up to 5940 TFLOPS, and GPU memory bandwidth exceeds 2000 GB/s. Parallel CPU and GPU, for more convenient maintenance. Here are the key features:

  • Fully enclosed liquid cooling design
  • Supports up to 4 liquid-cooled GPUs
  • Full liquid cooling for both CPU and GPU
  • Operates at full load with only 50dB noise at 30°C ambient temperature

Specifications

Category Details
Processor Support
  • Single AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97×4 series processors
GPU
  • Up to 4× NVIDIA RTX PRO™ 6000 Blackwell GPUs
  • OR up to 4× GeForce RTX™ 50 Series GPUs
  • OR up to 7× RTX 6000 Ada
Socket
  • Single socket SP5 (LGA 6096)
Chipset
  • System on Chip
Memory Capacity
  • 8 × DDR5 DIMM slots (1DPC)
Expansion Slots
  • 7 × PCIe 5.0 x16 slots
  • 1 × PCIe 5.0 x8 slot
Network Connectivity
  • 2 × 10GbE RJ45
I/O Ports
  • 1 × dedicated IPMI
  • 1 × DB15 VGA port
  • 2 × USB 3.2 Gen1 ports
  • 1 × DB9 COM port
Storage
  • 16 × SATA 6Gb/s
System Management
  • IPMI 2.0
  • KVM/media over LAN
  • Dedicated LAN port
Operating Properties
  • Operating temperature: 5°C ~ 30°C
  • Non-operating temperature: 5°C ~ 60°C
  • Humidity: 20% ~ 90% (non-condensing)
Chassis
  • Tower
Power Supply
  • 2 × 1600W power supply
System Dimensions (H × W × D)
  • 660mm × 380mm × 611mm
