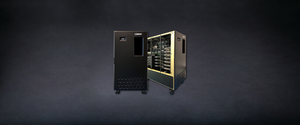

LiquidMax™ TL40-X3

Smart Computing, Ultra Quiet
Dual Socket, 4x PCIe 4.0 GPU Tower Workstation

  • Integrated with dual socket 3rd Gen Intel® Xeon ® Scalable series processors
  • Supports 4 FHFL GPUs
  • Utilizes CPU+GPU full liquid cooling solution
  • The noise level of the entire workstation at full load is 55dB
  • 10 x 3.5”/2.5”+2 x 2.5” internal hard disk bays

Download  Data Sheet

Liquid Cooling Components

CPUs and GPUs are the components that generate the most heat inside the workstation. As a result, we need to ensure that the heat generated by these components is quickly dissipated away in a very short time, to ensure the workstation operates efficiently.



For workstations with 4 high performance GPUs, the choice of heat dissipation method is very important. After repeated tests and comparisons, AMAX has chosen a GPU parallel cooling design. After the liquid is cooled, it will flow through all GPUs in parallel at the same time, and after the heat is taken away as a whole, it will be returned to the cold row for heat dissipation. This ensures that all GPUs are always operating in a low temperature state.



Smart LCD Panel, Air Duct Design

The LiquidMax™ TL40-X3 workstation contains multiple temperature detectors to monitor the highest temperature inside the machine in real time. Real-time monitoring of fan speed.



Real-time monitoring of liquid flow rate, water level and temperature. It incorporates high-efficiency circulating air duct design, and the air outlet fan speed can be adjusted to ensure ventilation and improve heat dissipation efficiency.



Applications:

Image recognition, Autonomous driving, Online teaching, Smart medical, Video surveillance, and Mobile communication.

Full Liquid Cooling Support, with Extreme Noise Reduction

  • Noise level of the entire workstation at full load is 55dB.
  • Circulating air duct design, with no dead spots for heat dissipation
  • Adjustable fan speed, delivering a balance between power efficiency and quietness
  • Balanced, closed circulating waterway, with no risk of liquid leakage

Dual Socket 3rd Gen Intel Xeon Processors, with 4 FHFL PCIe Gen4 GPUs

  • Up to 80 processor cores and 160 threads
  • Up to 192GB GPU Memory
  • NVLink bandwidth up to 112GB/s
  • Parallel GPU design, supports flexible assembly and disassembly

Intelligent LCD Panel, Provides Real-time Monitoring Status

  • LCD display for key temperature information
  • Real-time monitoring of important parameters of the cooling system
  • Real-time leakage detection

Flexible Configuration, High Scalability

  • Support 10 x 3.5″/2.5″ +2 x 2.5″SATA/SAS internal hard disk
  • Support NVMe M.2 (2280 /22110) SSD
  • Equipped with multiple USB 3.0 and USB 2.0 ports
  • Onboard dual 10Gbps RJ45 Ethernet ports and IPMI management port

Processor

  • Dual 3rd Gen Intel® Xeon® Scalable Processors up to 270W TDP and 80 processor cores per system

GPU Support & Quantity

  • 4 x double-width FHFL NVIDIA A100, A40, A30, A16, RTX A6000, A5000, A4000, Quadro RTX™, or GeForce RTX™ GPUs

Chipset

  • Intel® C621A chipset

Memory Capacity

  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
  • Up to 4TB Intel® Optane™ Persistent Memory 200 Series

Expansion Slots

  • 6 x PCIe 4.0 x16 slots
  • 1 x PCIe 4.0 x8 slot

Network Connectivity

  • 2 x 10GbE RJ45

I/O ports

  • 1 x BMC LAN port
  • 1 x VGA port
  • 6 x USB 3.0
  • 2 x COM

System Management

  • Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with  dedicated LAN port

Drive Bays

  • 10 x 3.5”/2.5”+ 2 x 2.5”SATA/SAS internal drive bays
  • 2 x NVMe M.2(2242/2260/2280/22110)

Power Supply

  • Single 2000W high efficiency power supply

System Dimensions  (H x W x D)

  • Tower chassis
  • 24.7″ x 12.5″ x 26.4” / 629mm x 319mm x 670mm
