As deep learning neural networks grow more complex and their datasets expand, the demand for computing capacity to train them efficiently also increases. To address this, developers are leveraging multi-GPU systems, which offer near-linear performance scaling. A critical factor in maintaining this scaling is the implementation of flexible, high-bandwidth communication between GPUs.

NVSwitch by NVIDIA enables high speed GPU connectivity for data centers, HPC, and AI. It offers high data transfer rates and scalable GPU clustering, essential for AI and deep learning. AMAX engineers custom solutions with NVSwitch for low-latency communication combined with NVIDIA's NVLink for improved GPU linking. NVSwitch is ideal for advanced AI tasks and complex computations in sectors needing accelerated and cohesive GPU performance across systems.

Ready to upgrade your data center? Contact AMAX for cutting-edge NVIDIA NVSwitch solutions.

Understanding the NVIDIA NVSwitch

The NVIDIA NVSwitch is a cutting-edge interconnect fabric that enables unparalleled data transfers between GPUs within a server or across multiple servers. It serves as the backbone of many powerful computing systems, providing a significant boost to overall performance and scalability.

NVSwitch is an NVLink switch chip equipped with 18 NVLink ports per switch. It's designed as an 18 x 18-port fully connected crossbar internally. This configuration allows any port to communicate with any other at the full NVLink speed of 50 GB/s, culminating in a total aggregate switch bandwidth of 900 GB/s.

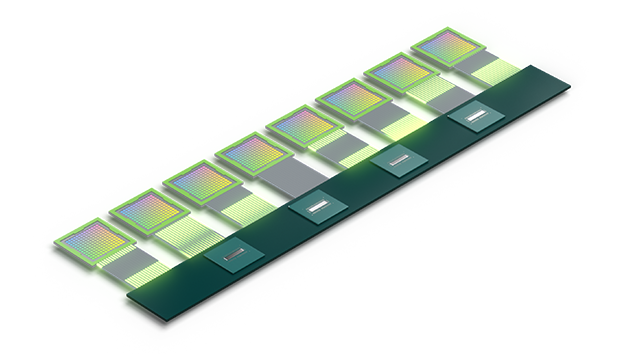

NVLink with NVSwitch Source:NVIDIA

NVSwitch and NVLink combine to improve GPU communication within high-performance computing environments. NVLink establishes direct, high-speed links between GPUs inside a server, markedly increasing data transfer speeds. Complementing this, NVSwitch interlinks several NVLinks, facilitating comprehensive, all-to-all communication among GPUs, not just within a single server but also across multiple servers, thereby forming a more unified computing network.

The Basics of NVIDIA NVSwitch

NVSwitch allows for a fully NVLink-connected system of 16 GPUs, each with a robust 300 GB/s connectivity. This interconnect framework removes bottlenecks and intermediary steps, enabling the 16 GPUs to operate in unison. As a result, an impressive 2 petaFLOPS of deep learning computing power is unleashed, paving the way for training advanced AI networks.

But what sets the NVSwitch apart from traditional interconnect solutions? It's the combination of advanced hardware and software technologies that make it truly remarkable. The NVSwitch leverages high-speed signaling, advanced error detection and correction mechanisms, and intelligent routing algorithms to maximize data throughput and minimize latency.

With the NVSwitch, computations that used to take hours can now be completed in a matter of minutes. It's a game-changer for industries that rely on intense computational power, such as scientific research, data analysis, and deep learning.

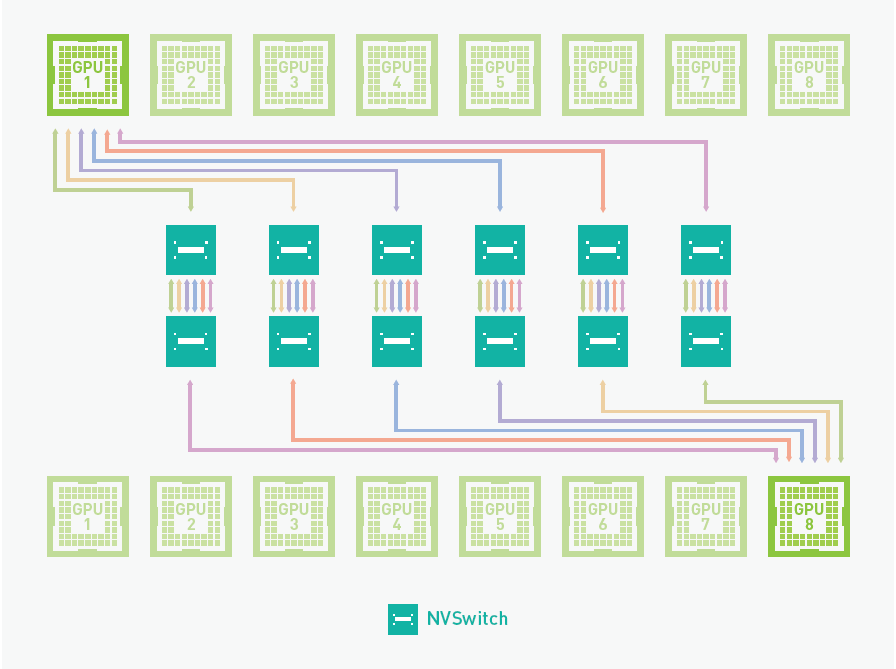

NVSwitch Topology Diagram Source: NVIDIA

Key Features of NVIDIA NVSwitch

Each port on the NVSwitch supports a 25 GB/s transfer rate in both directions. The crossbar design is non-blocking, ensuring that all ports can simultaneously communicate at full NVLink bandwidth. As shown in Figure-1, each of the 8 GPUs on a baseboard connects to all 6 NVSwitches via a single NVLink. Eight ports on each NVSwitch are dedicated to facilitating communication with GPUs on the other baseboard. This configuration allows any GPU on a baseboard to communicate with others on the same board at a full bandwidth of 300 GB/s using just one NVSwitch traversal.

Furthermore, each GPU can communicate at full bandwidth with any GPU on the second baseboard, which involves two NVSwitch traversals. The bi-section bandwidth between the boards is an impressive 2.4 TB/s, achieved through 48 links at 25 GB/s each way. It's important to note that the NVIDIA DGX-2™ platform utilizes only 16 of the available ports per switch, with the remaining ports being reserved for future use.

The NVSwitch supports advanced GPU-to-GPU direct communication, bypassing the need for host memory involvement. This direct communication path allows GPUs to exchange data with each other at lightning-fast speeds, further enhancing overall performance and reducing latency.

Another notable feature of the NVSwitch is its scalability. Multiple NVSwitches can be interconnected, providing virtually limitless expansion possibilities for computational nodes. This means that as your computational needs grow, you can easily scale up your system by adding more GPUs and NVSwitches.

Imagine a research facility that needs to process massive amounts of data for complex simulations or a data center that powers cutting-edge machine learning algorithms. The NVSwitch's scalability ensures that these organizations can meet their computational demands without limitations.

The NVIDIA NVSwitch is a revolutionary interconnect fabric that takes GPU computing to new heights. With its ultra-high-speed data transfers, advanced hardware and software technologies, and unparalleled scalability, the NVSwitch empowers industries to push the boundaries of what's possible in high-performance computing.

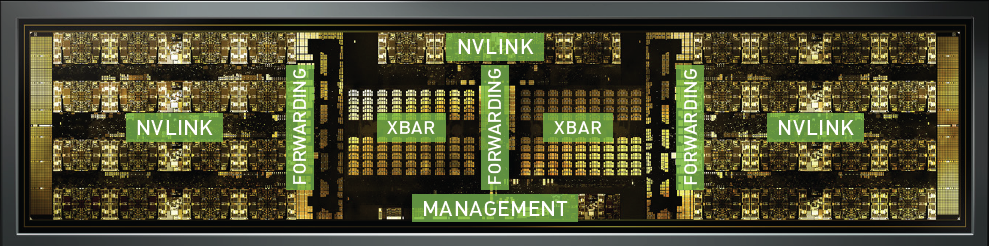

NVSwitch Die Shot Source: NVIDIA

The Architecture of NVSwitch

The NVSwitch utilizes a high-bandwidth, low-latency design, ensuring speedy data transfers between GPUs. It combines multiple interconnect technologies, including PCIe Gen4 and NVIDIA's NVLink, to deliver unprecedented performance levels.

Furthermore, the NVSwitch employs a sophisticated routing algorithm that intelligently distributes data across the GPU links, preventing congestion and ensuring efficient data flow. This intelligent routing system is crucial for maximizing performance and bandwidth utilization within a multi-GPU system.

NVLink ensures data integrity with cyclical redundancy coding (CRC), which detects errors and replays transfers. NVSwitch enhances this protection with error-correcting codes (ECC) safeguarding its datapaths, routing, and state structures. Additionally, it includes checks for address fidelity in the final hop and monitors for buffer overflows and underflows. For enhanced security, NVSwitch's routing tables are managed and indexed by the NVIDIA fabric manager, restricting applications to their designated address ranges.

NVSwitch significantly boosts the capabilities of larger GPU server systems, supporting 16 GPUs and offering 24 times more inter-GPU bandwidth compared to 4X InfiniBand ports. This allows for more intensive processing within a single server node. A server with 16 GPUs, such as NVIDIA’s DGX-2, which is equipped with NVSwitch, offers several advantages. It minimizes network congestion that typically occurs during data exchanges in neural network training between two GPU-equipped servers. These data exchanges happen on-node, leading to substantial performance improvements. Furthermore, NVSwitch enables a simpler, single-node programming model, effectively masking the complexity of the underlying hardware topology.

Performance and Scalability

Thanks to its innovative architecture, the NVSwitch delivers exceptional performance and scalability. By eliminating the need for data transfers to traverse the host memory, it significantly reduces latency and minimizes CPU involvement, resulting in faster computations and increased overall system efficiency.

Moreover, the NVSwitch's scalability allows for the creation of large-scale computing clusters, where multiple NVSwitches can be interconnected. This empowers organizations to build complex and powerful systems tailored to their specific requirements, making it an ideal choice for data centers and research facilities.

Imagine a data center equipped with multiple NVSwitches, each connected to a cluster of GPUs. This interconnected system can handle massive workloads, such as training deep neural networks or running complex simulations, with ease. The NVSwitch's ability to distribute data intelligently across the GPU links ensures that each GPU is utilized to its full potential, maximizing performance and minimizing bottlenecks.

Furthermore, the NVSwitch's scalability extends beyond individual data centers. It enables organizations to build interconnected clusters across multiple locations, creating a distributed computing network. This distributed approach not only enhances performance but also provides redundancy and fault tolerance, ensuring uninterrupted operation even in the event of hardware failures.

The NVSwitch's technological innovations, from its high-bandwidth, low-latency architecture to its intelligent routing algorithm, make it a game-changer in the world of GPU computing. Its exceptional performance, scalability, and efficiency make it an invaluable tool for organizations looking to tackle complex computational tasks and push the boundaries of what is possible.

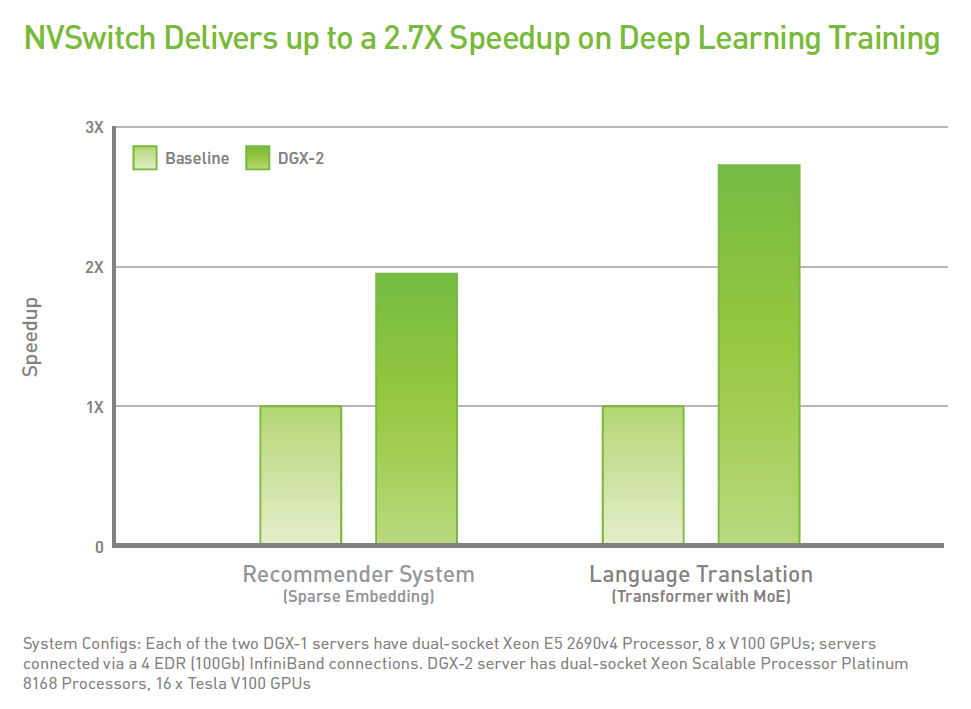

Source: NVIDIA

The Impact of NVIDIA NVSwitch on High Performance Computing

The NVSwitch has had a profound impact on high-performance computing, revolutionizing the way data centers and research facilities tackle computationally intensive tasks.

As neural networks continue to expand in size, complexity, and design, the specific nature of these networks may be uncertain, but the increasing demand for deep learning computation is a definite trend. In the realm of high-performance computing (HPC), tasks such as large-scale weather modeling, which rely on FFT-based computations, are also pushing the need for robust multi-GPU computing power. With configurations like a 16-GPU setup offering a half-terabyte of GPU memory in a unified address space, applications can effortlessly scale up, bypassing the need to understand the intricate physical topology beneath.

High-performance computing has always been a crucial aspect of scientific research and technological advancements. The ability to process massive amounts of data quickly and efficiently has allowed researchers to make astonishing discoveries and develop innovative solutions to complex problems. However, traditional computing architectures often struggled to keep up with the increasing demands of these tasks.

Transforming Data Center Performance

With the NVSwitch, data centers can now achieve unprecedented levels of performance and efficiency. Multiple GPUs can work in harmony, completing tasks faster and enabling data center operators to handle larger workloads with ease.

Imagine a data center bustling with activity, with rows upon rows of powerful servers working tirelessly to process complex calculations. With the NVSwitch, these servers can now communicate easily with each other, sharing data and resources in real-time. This level of interconnectivity allows for efficient parallel processing, reducing the time required to complete computationally intensive tasks.

By harnessing the power of the NVSwitch, data centers can unlock new possibilities in scientific simulations, weather forecasting, financial modeling, and other computationally demanding applications. Researchers can now simulate complex physical phenomena with greater accuracy, leading to more precise weather predictions and improved understanding of natural disasters.

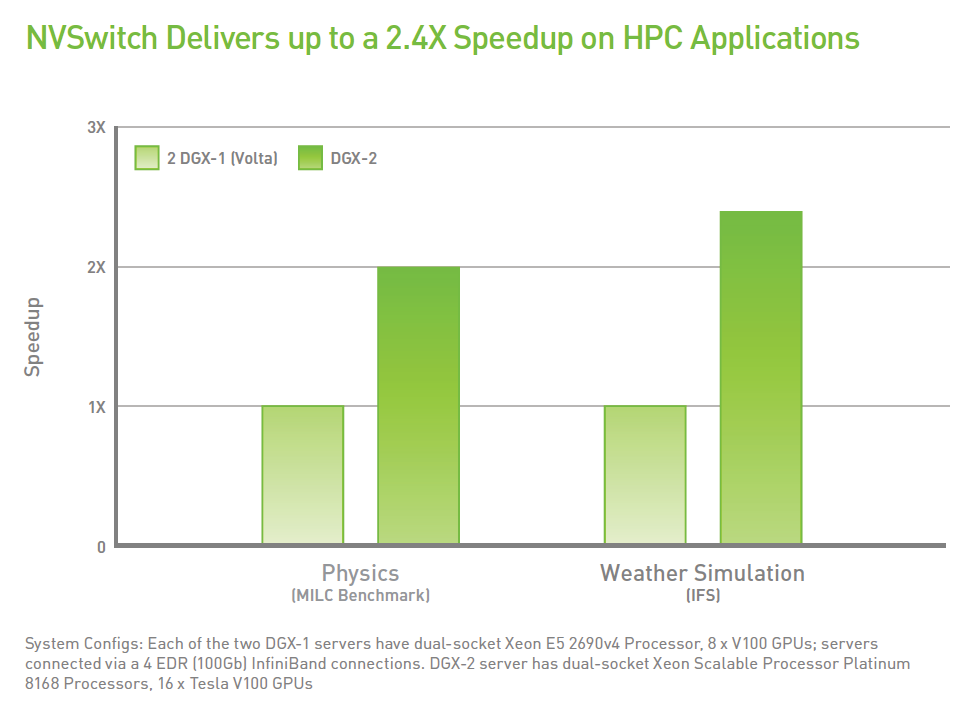

Source: NVIDIA

Accelerating AI and Deep Learning

The NVSwitch's impact on artificial intelligence (AI) and deep learning cannot be understated. Training complex neural networks requires massive amounts of computational power, and the NVSwitch provides the means to achieve this.

Artificial intelligence and deep learning technologies have revolutionized various industries, from healthcare to transportation. These technologies have the potential to transform the way we live and work, but their development heavily relies on the ability to train and optimize complex models.

Organizations utilizing AI and deep learning technologies can leverage the NVSwitch to accelerate training times, enabling faster model iteration and improved productivity. This means that researchers can experiment with different architectures and parameters more rapidly, leading to more accurate models and faster breakthroughs.

In the field of medicine, the NVSwitch allows researchers to analyze vast amounts of patient data and identify patterns that could lead to better diagnostics and treatment plans. Autonomous vehicles can benefit from the NVSwitch's power by processing sensor data in real-time, enabling safer and more efficient transportation systems. Natural language processing, another area heavily reliant on AI, can also benefit from the NVSwitch's capabilities, leading to more accurate speech recognition and language translation.

The NVSwitch has revolutionized high-performance computing by enabling data centers to achieve unprecedented levels of performance and efficiency. Its impact on AI and deep learning has accelerated the development of innovative technologies across various industries. As computational demands continue to grow, the NVSwitch will play a crucial role in shaping the future of high-performance computing and driving further advancements in scientific research and technological innovation.

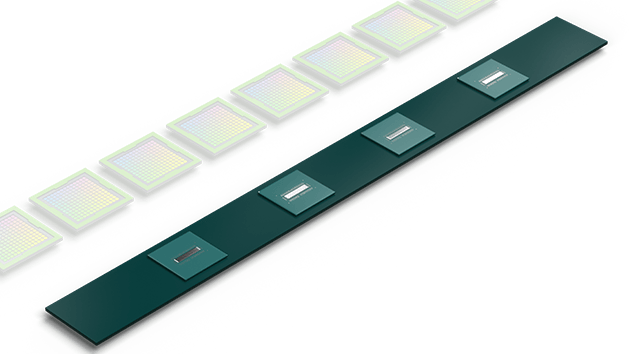

NVLink and NVSwitch Source: NVIDIA

The Future of Computing with NVIDIA NVSwitch

As technology continues to evolve, the NVSwitch remains at the forefront of innovation. The possibilities for its future applications are vast and exciting.

With its advanced networking capabilities, the NVSwitch is poised to revolutionize the world of high-performance computing. As industry experts predict, this cutting-edge technology will continue to play a critical role in pushing the boundaries of computational power.

Industry experts predict that the NVSwitch will continue to play a critical role in pushing the boundaries of high-performance computing. With advancements in GPU technologies, we can expect even faster and more powerful GPUs in the future, making the NVSwitch an indispensable component in advanced computing systems.

But what does this mean for the future? The possibilities are endless. Imagine a world where real-time simulations are so realistic that they blur the line between virtual and physical reality. With the NVSwitch's ability to handle massive workloads and enable fast data transfers, emerging fields such as virtual reality, augmented reality, and real-time ray tracing stand to benefit tremendously. This technology opens up a new world of possibilities for these industries, allowing for more immersive experiences and technological advancements.

Furthermore, the NVSwitch's impact extends beyond traditional scientific computing and AI. As the demand for computational power continues to rise, the NVSwitch's scalability and performance will pave the way for larger-scale infrastructures capable of handling the most complex computational challenges. From weather forecasting to drug discovery, the NVSwitch will be instrumental in driving advancements in various fields, enabling researchers and scientists to tackle problems that were once considered impossible.

The Role of NVSwitch in Next-Generation Computing

Looking ahead, the NVSwitch will continue to drive the next generation of computing technologies with the newest NVIDIA H200 and GH200 superchip. As the demand for processing power increases, the NVSwitch's scalability and performance will pave the way for larger-scale infrastructures capable of handling the most complex computational challenges.

As the world becomes more reliant on data-driven solutions, the NVSwitch's capabilities will be instrumental in fueling advancements in various fields, ranging from scientific research to personalized medicine and beyond.

Imagine a future where personalized medicine becomes a reality. With the NVSwitch's immense computational power, medical researchers will be able to analyze vast amounts of genomic data in record time, leading to more accurate diagnoses and personalized treatment plans. This technology has the potential to revolutionize healthcare, saving lives and improving patient outcomes.

Moreover, the NVSwitch's impact on scientific research cannot be overstated. From simulating the behavior of complex biological systems to modeling climate change, the NVSwitch's ability to process massive amounts of data will enable scientists to gain deeper insights into the world around us. This, in turn, will drive advancements in fields such as renewable energy, environmental conservation, and space exploration.

As networking technology continues to advance, the NVSwitch will remain at the forefront of what represents the modern stack for high performance GPU compute systems, driving innovation and pushing the boundaries of high-performance computing. From virtual reality to personalized medicine, this revolutionary technology will shape the future of various industries, making the impossible much more possible.
