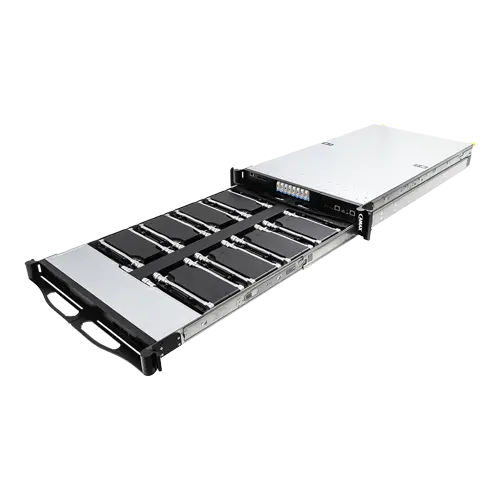

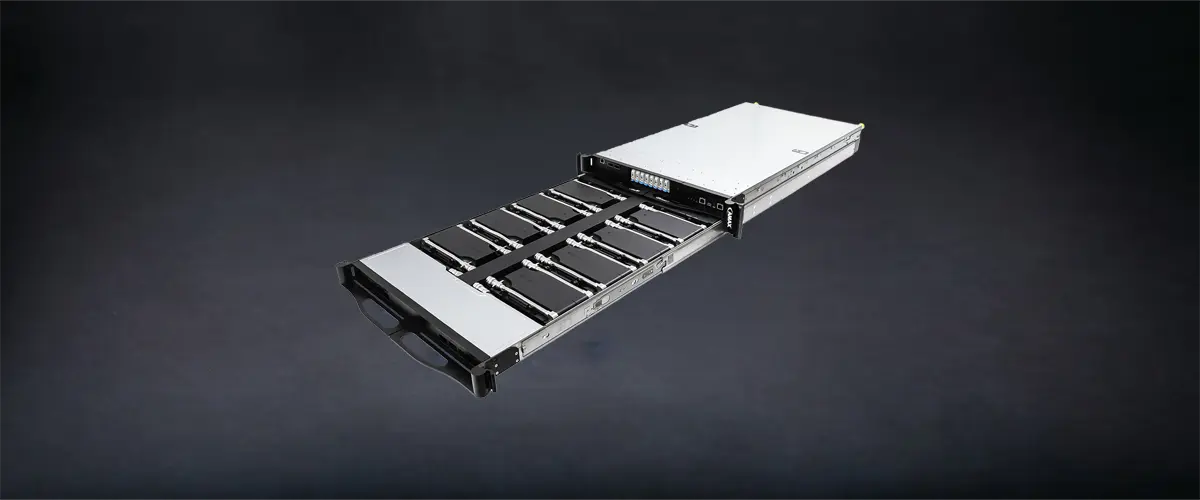

AceleMax® AXG-228RI

Features

Fully liquid-cooled 2U rackmount with IT Gear Connector for 54V DC busbar
NVIDIA® HGX™ Rubin NVL8
Dual Socket E2 (LGA 4710), supports Intel® Xeon® 6700P-series, 6500P-series, and 6700E-series processors
16+16 DIMM slots (2DPC); supports DDR5 RDIMM, MRDIMM
8 Hot-swap liquid-cooled E1.S NVMe (PCIe6.0 x4) drive bays
1 FHHL PCIe6.0 x16 for liquid-cooled NVIDIA® BlueField-4 DPU
Supports 2 M.2 (PCIe5.0 x4)
8 OSFP (800Gb/s) via NVIDIA® ConnectX®-9 SuperNIC™
1 RJ45 (1GbE) by Intel® I210
Remote management (IPMI)

Applications

Specifications

Specification	Details
Dimension (W x H x D)	800 x 448 x 87 mm (2U) 31.5” x 17.6” x 3.4”
Processor Support	Intel® Xeon® 6700P-series, 6500P-series, and 6700E-series processors Dual processors
GPU	NVIDIA® HGX™ Rubin NVL8
Memory	32 x DIMM slots (16+16, 2DPC) DDR5 RDIMM/MRDIMM Max Capacity per DIMM: RDIMM: up to 128 GB per DIMM MRDIMM: up to 64 GB per DIMM Max DIMM Frequency: RDIMM: up to 6400 MT/s (1DPC), 5200 MT/s (2DPC) MRDIMM: up to 8000 MT/s (1DPC only)
I/O Ports	8 OSFP (800Gb/s) via NVIDIA® ConnectX®-9 SuperNIC™ 1 RJ45 (1GbE) by Intel® I210 1 dedicated IPMI 1 Type-A (USB3.2 Gen1) 1 Micro USB Debug Port 1 Mini-DisplayPort
Power Supply	54 V DC busbar
