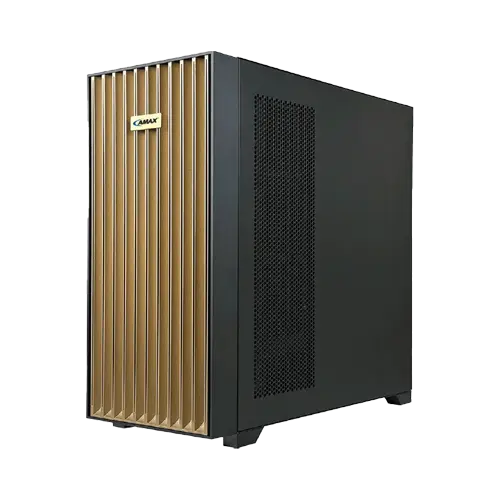

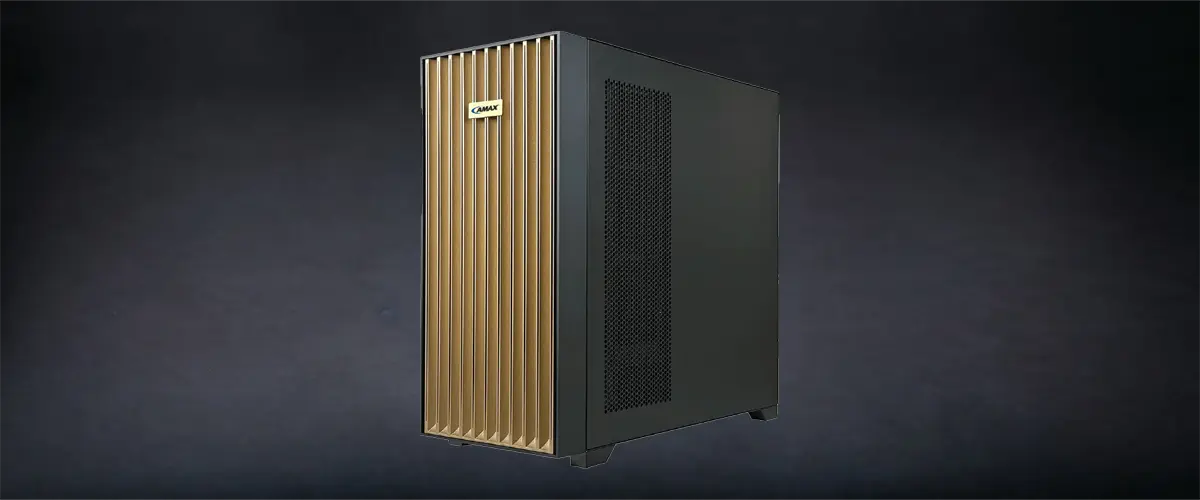

AceleMax® AXG-GBU1A

Applications

Specifications

Category	Details
Processor Support	NVIDIA GB300 Grace™ Blackwell Ultra Desktop Superchip 1 x NVIDIA Grace™ CPU 1 x NVIDIA Blackwell Ultra GPU Connected with NVIDIA NVLink™-C2C
Memory	NVIDIA Grace™ CPU: 496 GB of LPDDR5X memory with ECC 396 GB/s memory bandwidth NVIDIA Blackwell Ultra GPU 252 GB HBM3E 7.1 TB/s memory bandwidth
Storage	Internal M.2: 2 x M.2 (2280), PCIe Gen5 x4, from CPU 2 x M.2 (2280), PCIe Gen6 x4, from ConnectX®-8
Networking	2 x 400 Gb/s QSFP (1 x NVIDIA ConnectX®-8 SuperNIC™) 1 x 10 Gb/s LAN (1 x Marvell AQC113)
Expansion Slots	1 × PCIe x16 slot (Gen5 x16), for GPUs 1 × PCIe x16 slot (Gen5 x8) 1 × PCIe x16 slot (Gen5 x8) 1 × M.2 (2230) E-key slot (Wi-Fi), PCIe Gen2 x1, from NVIDIA ConnectX®-8 SuperNIC™
I/O Ports	Front I/O 1 × USB 3.2 Gen2 (Type-C), 5 V output 2 × USB 3.2 Gen1 (Type-A) 2 × Audio jacks (Audio Out / Mic) 1 × Power button with LED 1 × Reset button with storage activity LED Rear I/O 4 × USB 3.2 Gen2 (Type-A) 1 × Micro USB (USB-to-UART) 1 × Mini DisplayPort (Mini-DP) 2 × QSFP ports 1 × RJ45 port 1 × MLAN port 2 × Wi-Fi antenna connectors 3 × Audio jacks (Audio In / Audio Out / Mic)
Cooling	3 x 120x120x25mm System Fans
Power Supply	1 x 1600W ATX 80 PLUS Platinum power supply
