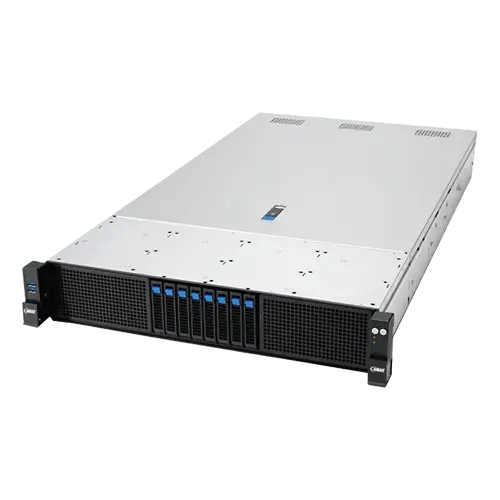

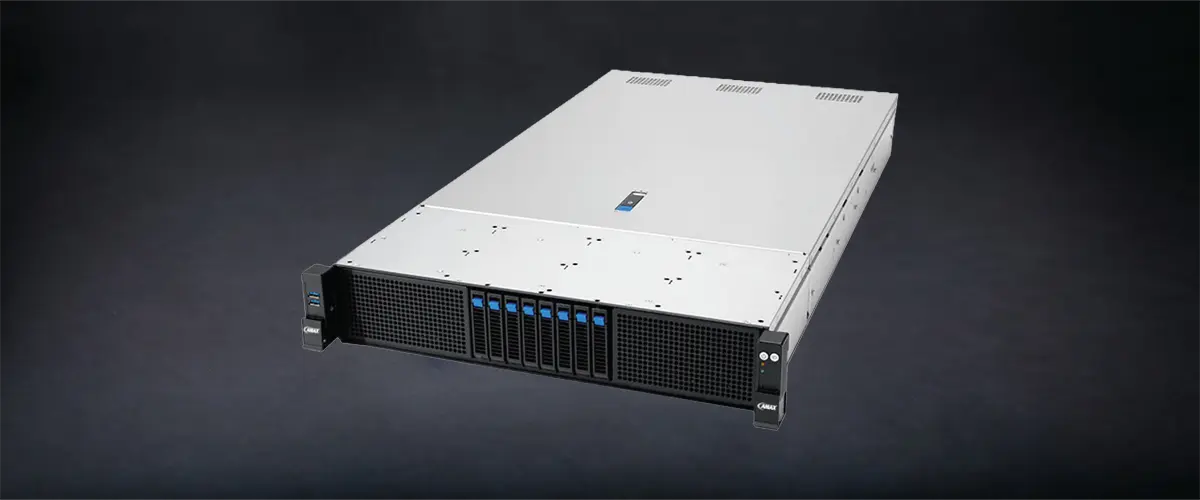

ServMax® X-2200B

Features

Powered by dual Intel® Xeon® 6 processors (formerly codenamed Sierra Forest and Granite Rapids), with DDR5 RDIMM up to 6400MHz 1DPC or MRDIMM up to 8000 MHz, 1DPC
CPU maximum TDP of up to 350W
GPU-optimized design allows three dual-slot GPU for AI workloads and high performance computing (HPC)
Up to 10 PCIe® 5.0 slots

Specifications

Category	Details
Processor Support	Supports Intel Xeon 6 processors Intel® Xeon® 6700 series processors with E-cores Intel® Xeon® 6 Processors with P-Cores Dual processors, TDP up to 350W
Memory	32 x DIMMs, (8-channel per CPU, 16 DIMM per CPU) Up to 6400MHz (1DPC) Capacity: Maximum up to 4TB Memory size: 128GB, 96GB, 64GB, 32GB, 16GB RDIMM
Storage	Hot swap: 12 x 2.5”/3.5” NVMe/SATA/SAS 2 x M.2 Gen5 x2 (2280/2260)
Networking	1 x Management Port
I/O Ports	Front: 2 × USB 3.2 Gen1 Rear: 2 x USB 3.2 Gen1, 1 x Mini-DP, 1 x RJ45 Management LAN, 1 x Debug
Power Supply	1+1 80 PLUS 3200W Titanium redundant power supplies 1+1 2700W redundant power supplies
